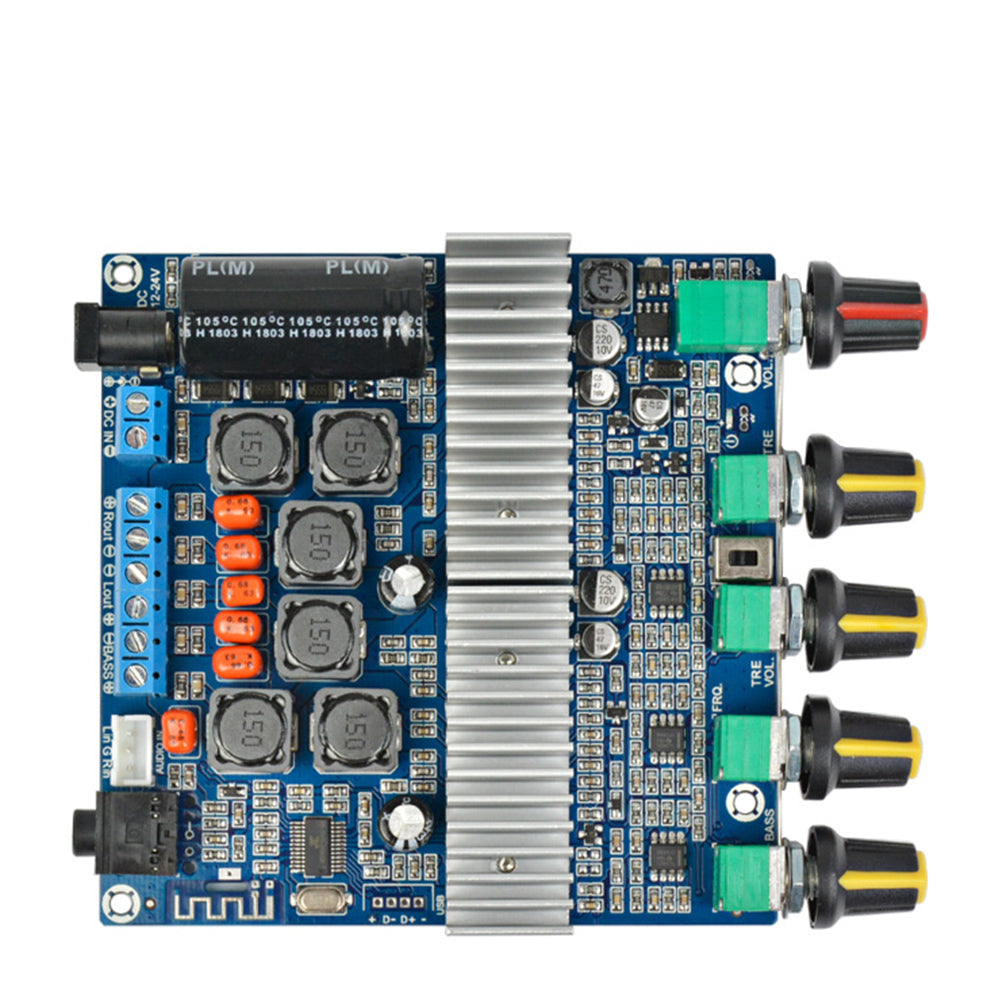

Amplifier Board - AIYIMA B2D932 - TPA3116

AIYIMA Audio
Audio Amplifiers
$74.99 $46.99
$46.99
Product details:
1. This is a DC-powered 12-24V power supply, using TI's TPA3116D2 high-performance digital power amplifier chip as the core, one to do parallel bridged bass channel power amplification output, one to do left and right channel power amplification output. Can support 100W (bass channel) + 50W (left channel) + 50W (right channel) three-channel output.
2. Support Bluetooth audio receiving, external audio input interface, with preamplifier, bass crossover processing; bass volume, bass frequency, left and right channel volume, treble, function control switch / total volume, 5 adjustment potentiometers.
3. Wide working voltage, energy-saving design, efficiency up to 90%. You can use a good performance switching power supply, laptop switching power supply, you can also use a charging bottle, or car power supply, etc...
4. The board is a finished board that has been soldered and tested. Connect the speaker box according to the picture, connect the appropriate power supply, connect to the Bluetooth audio device to play, or connect the sound source input correctly.

The main technical parameters:
1. Operating voltage range: DC DC12-24V (current 3-4A, or 19-24V/4-5A, if the power requirement is higher than 20-24V/8-9A)
Note that the DC no-load voltage should not be greater than 25.5V.
2. Bluetooth receiving distance: >8 m (barrier-free distance)
3. Audio input sensitivity: 600-800mV
4. Frequency response range: 20Hz-20KHz
5. Speaker impedance: left and right channels 4-8 ohms, bass channel 2-8 ohms


Function switch Instructions for use:
1. Plug in the power on default Bluetooth mode
2. Bluetooth disconnected, long press the switch can switch to the audio input mode
3. Bluetooth play status, short press the switch to pause / play
