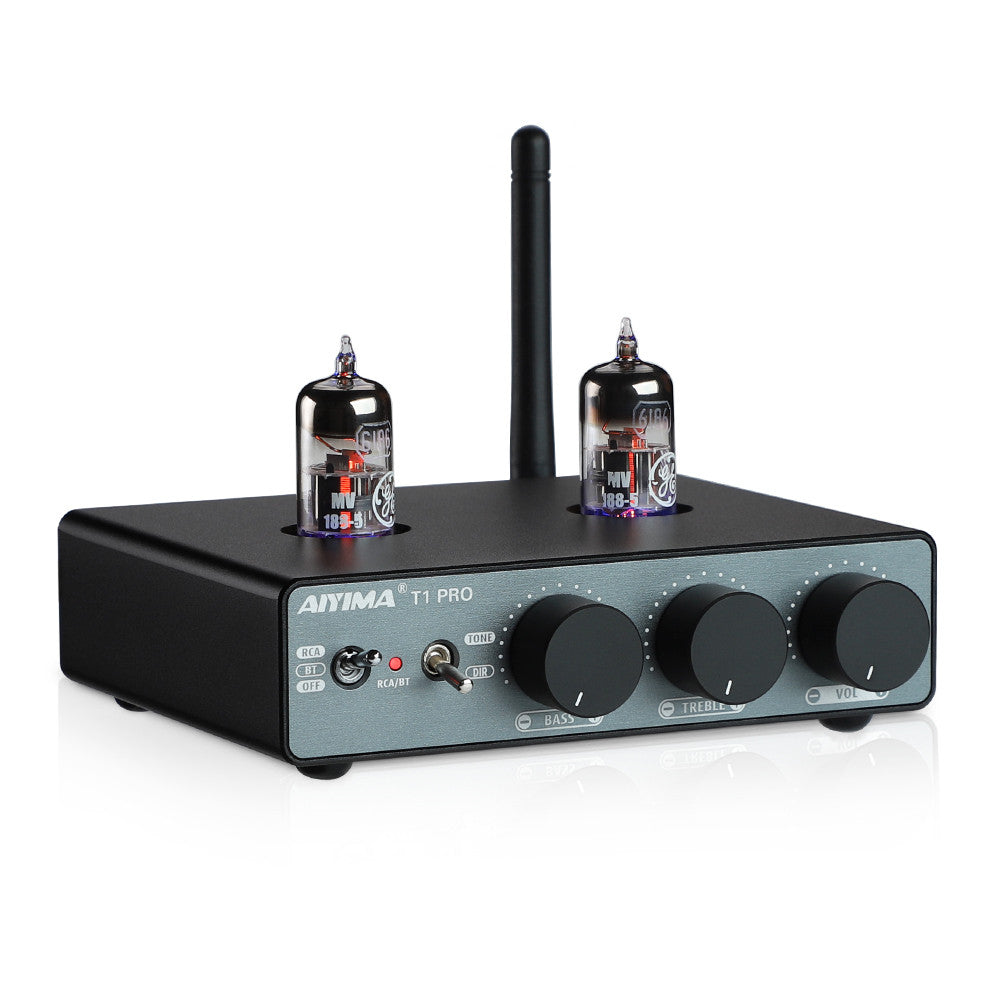

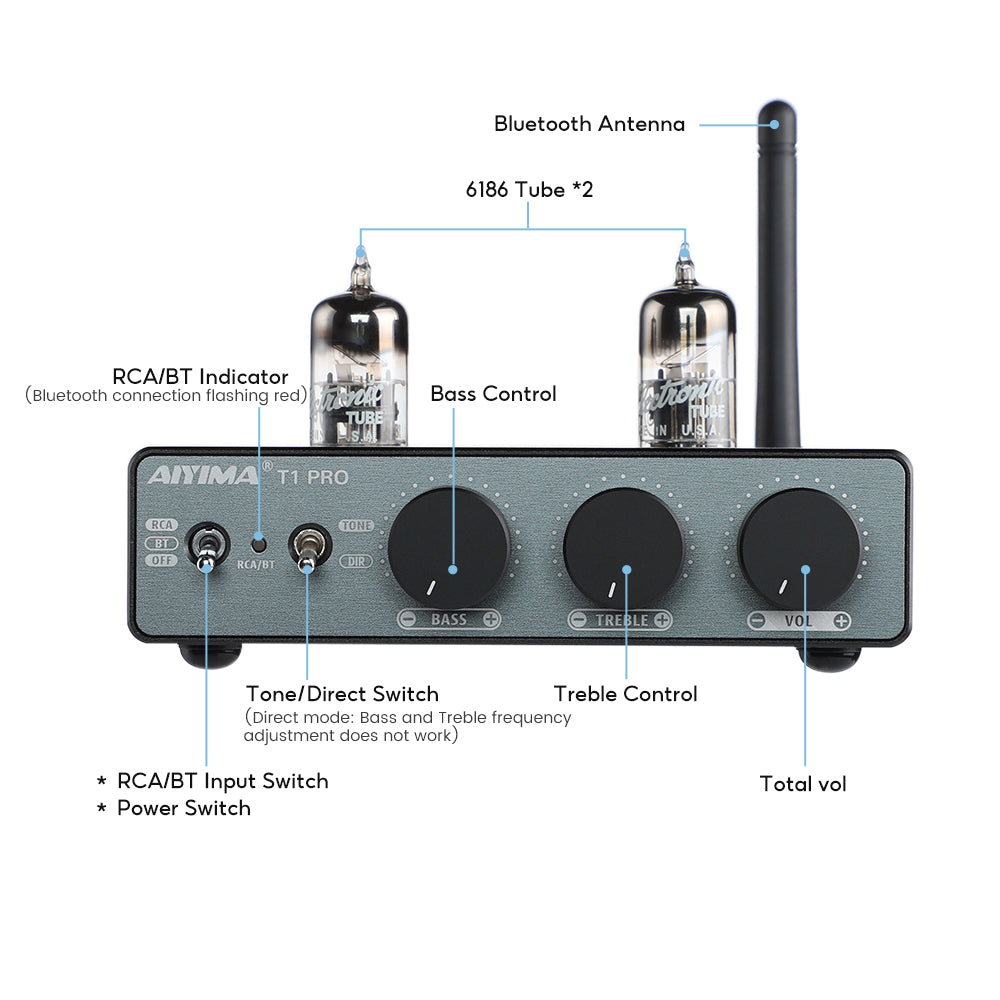

AIYIMA T1 PRO

Tube Preamplifier

Size

QTY

PRICE $74.99

PRODUCT DETAILS

Feature:

Premium Audio Quality and Versatile Connectivity: The T1 PRO Tube Preamplifier features QCC3040 Bluetooth technology and NE5532P operational amplifier chips, supporting AAC, SBC, APTX, and high-fidelity APTX-HD codecs for exceptional wireless and wired audio connections.

Flexible Audio Adjustments: Equipped with a 5725 electron tube and replaceable NE5532P op-amps, allowing for independent adjustment of highs and lows up to +6dB, delivering detailed and clear sound customization.

Multi-Device Compatibility and Wide Applications: Supports multiple input modes including RCA and Bluetooth, compatible with smartphones, tablets, computers, MP3 players, TVs, and more, catering to various audio sources and environments.

Powerful Output Options: Offers versatile output configurations including active speakers, amplifier and passive speakers setup, or active subwoofer output, accommodating diverse audio system setups for enhanced listening experiences.

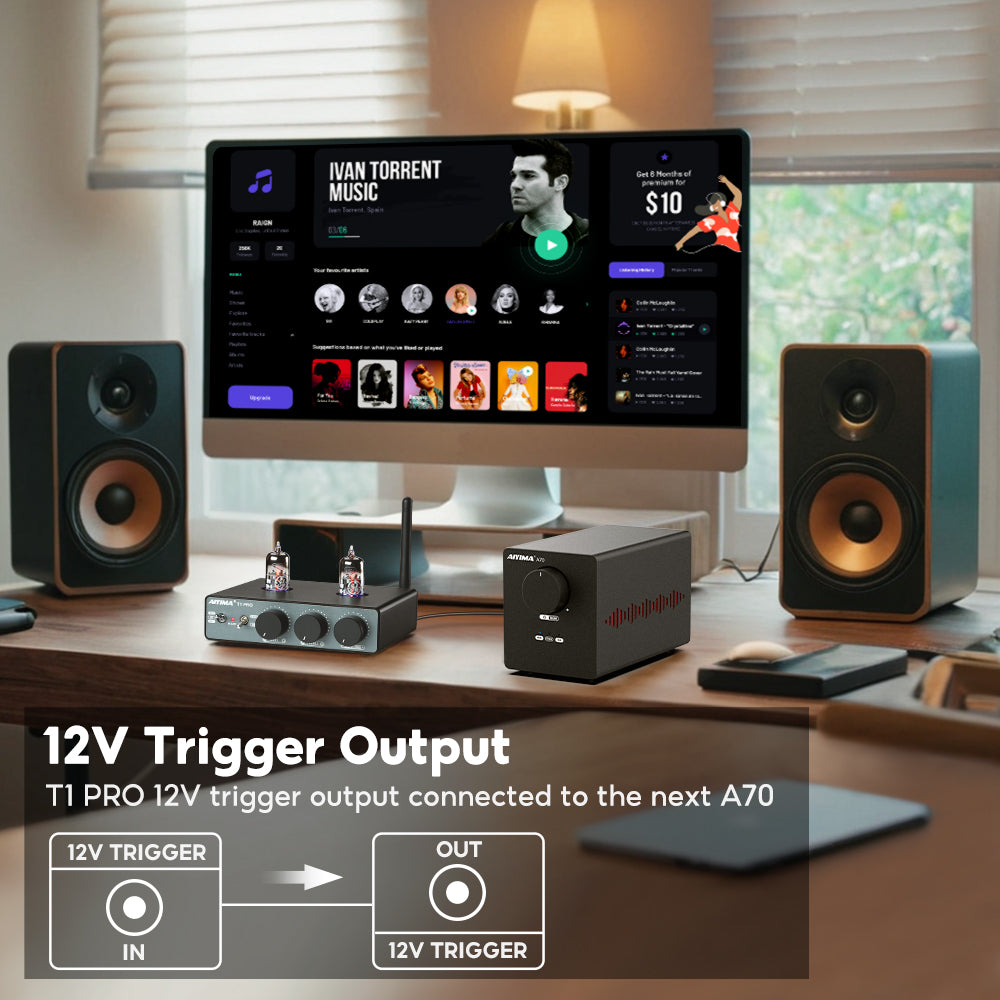

Stable and Convenient Design: Compact dimensions and moderate weight make it easy to place and move. Includes a 12V trigger for smart integration with other devices, enhancing convenience and system stability.

Parameters:
Chipset: QCC3040+ NE5532P
QCC3040 Bluetooth: Version 5.1, supports AAC, SBC, APTX, APTX-LL, APTX-HD
Electronic tube model: 5725
Replaceable tubes are: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6*1N, 6AK5, etc.
Operational amplifier chip: NE5532P*2
Replaceable operational amplifier chip: OPA2604, OPA2134, LM4562, JRC5532, etc.
Distortion: ≤0.23%
Frequency response range: 20hz- 20khz (±1db)
Signal-to-noise ratio: ≥110db
Treble/bass adjustment range: +6db

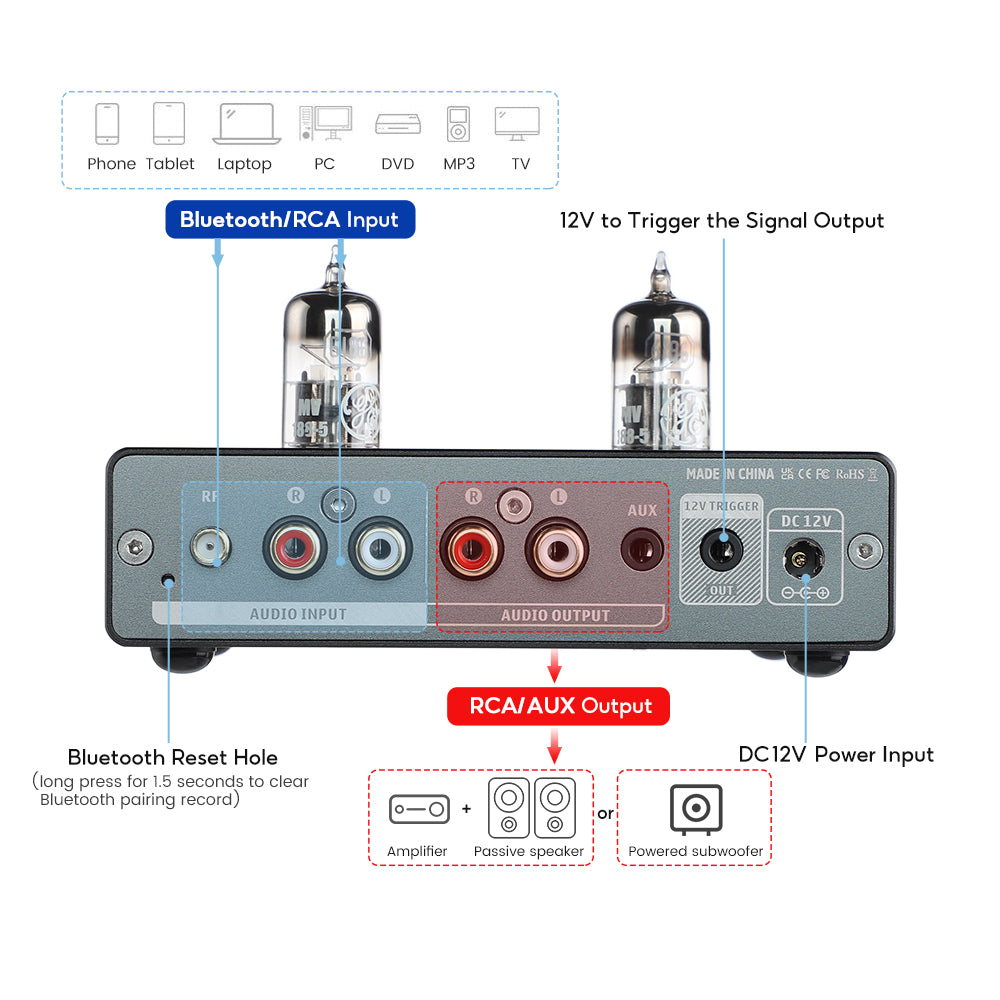

Input mode: RCA, Bluetooth
Supported devices: mobile phones, tablets, computers, MP3, TVs, etc. This tube preamplifier does not support phono.

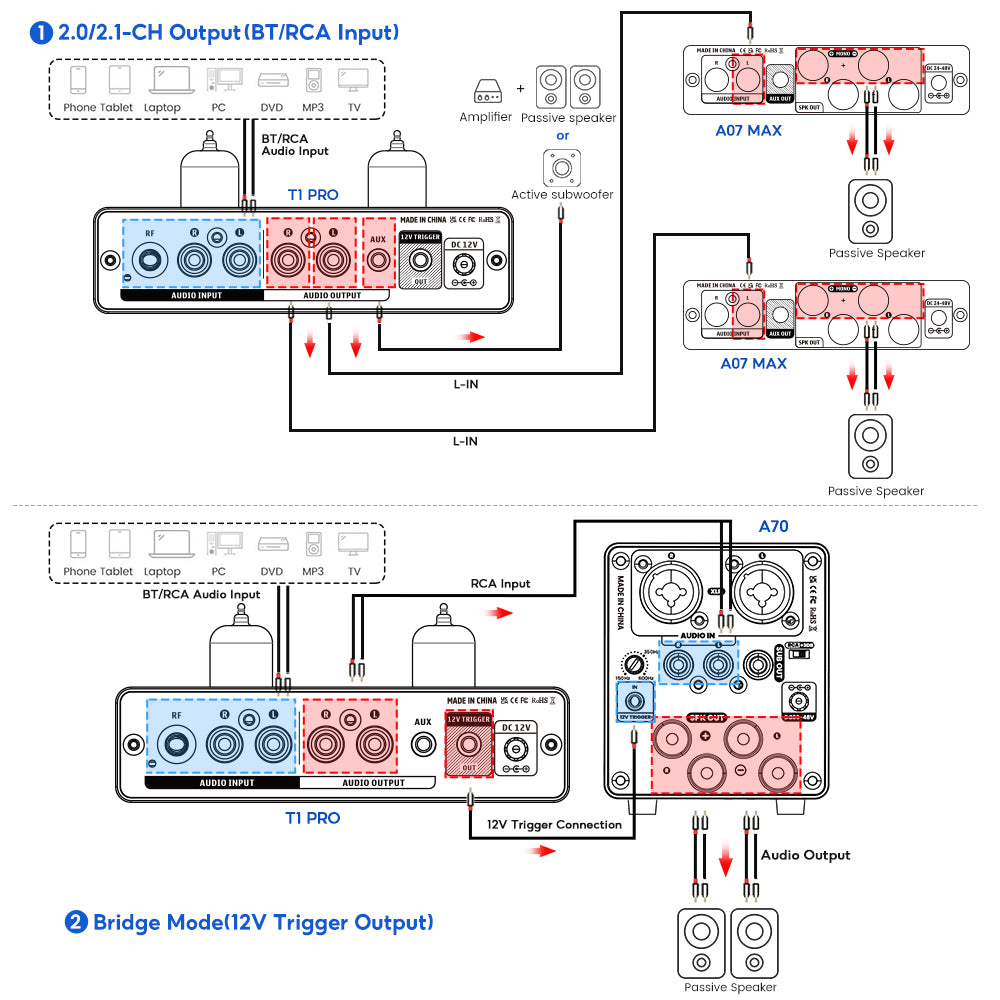

Output mode: 1. Active speaker 2. Amplifier + passive speaker, 3. Active subwoofer
Power supply: DC12V
Dimensions: 102*130*33mm (excluding tube height)
Net weight: 440g

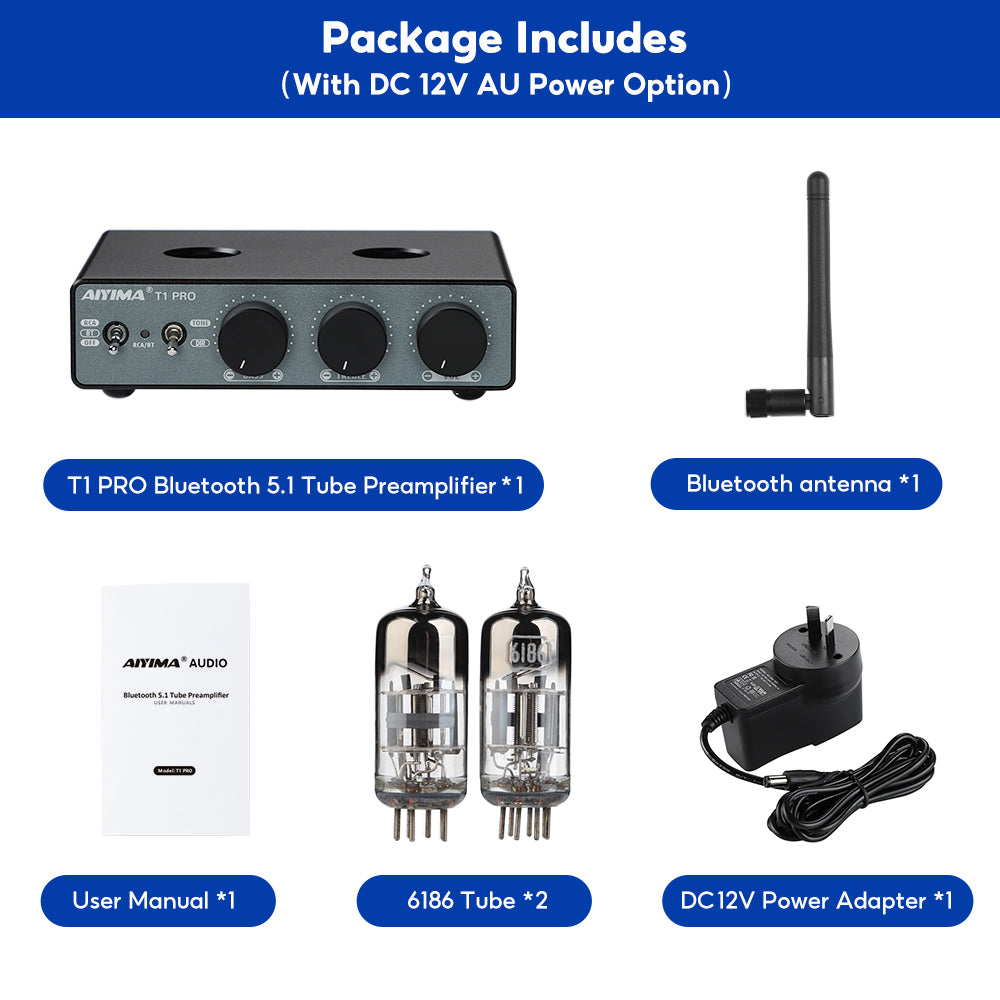

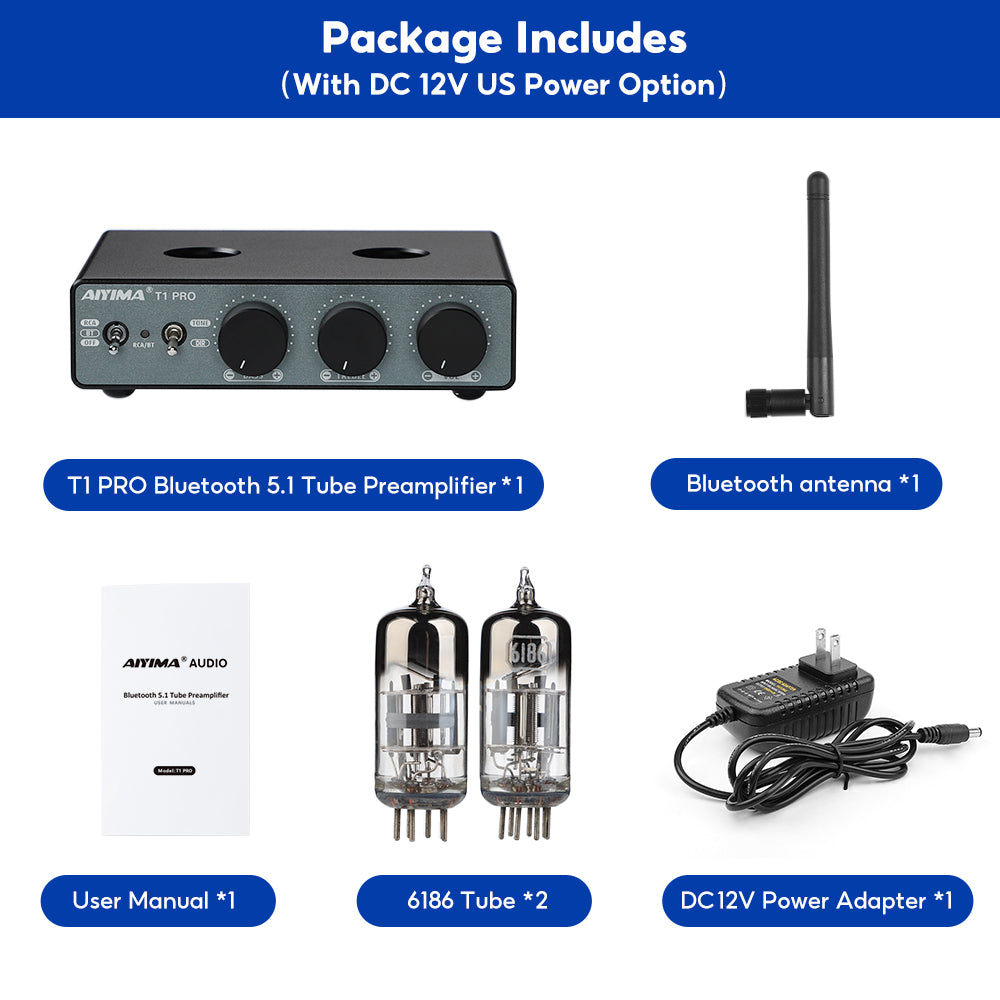

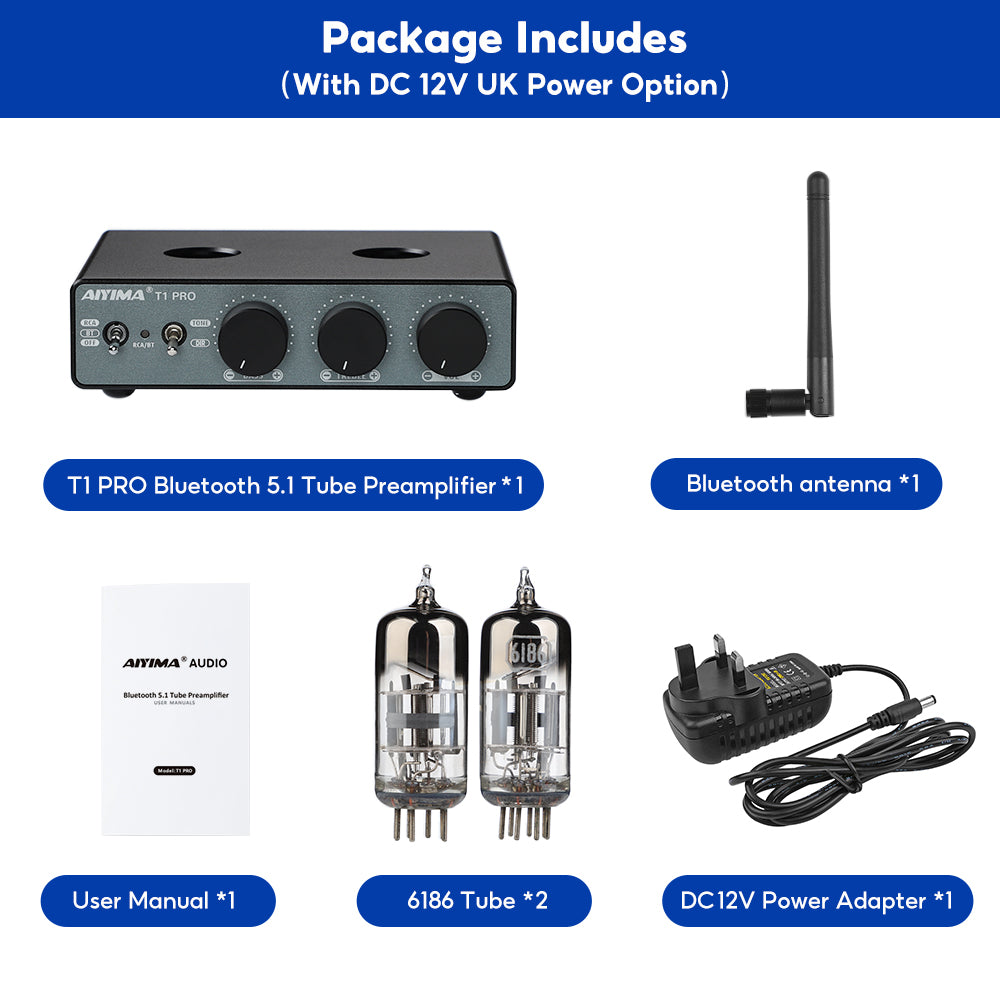

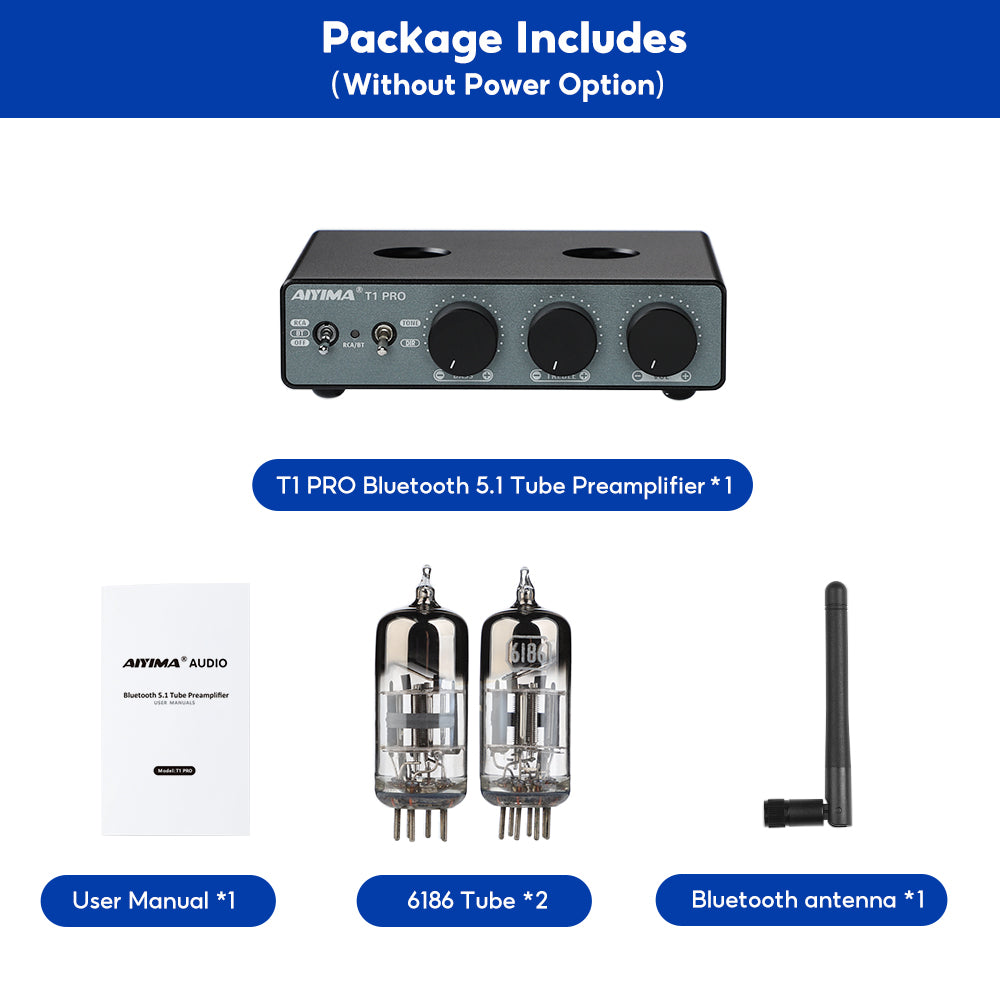

Package include:
T1 PRO*1
User Manual*1
6186 Tube*2
Bluetooth Antenna*1
Optional Power supply

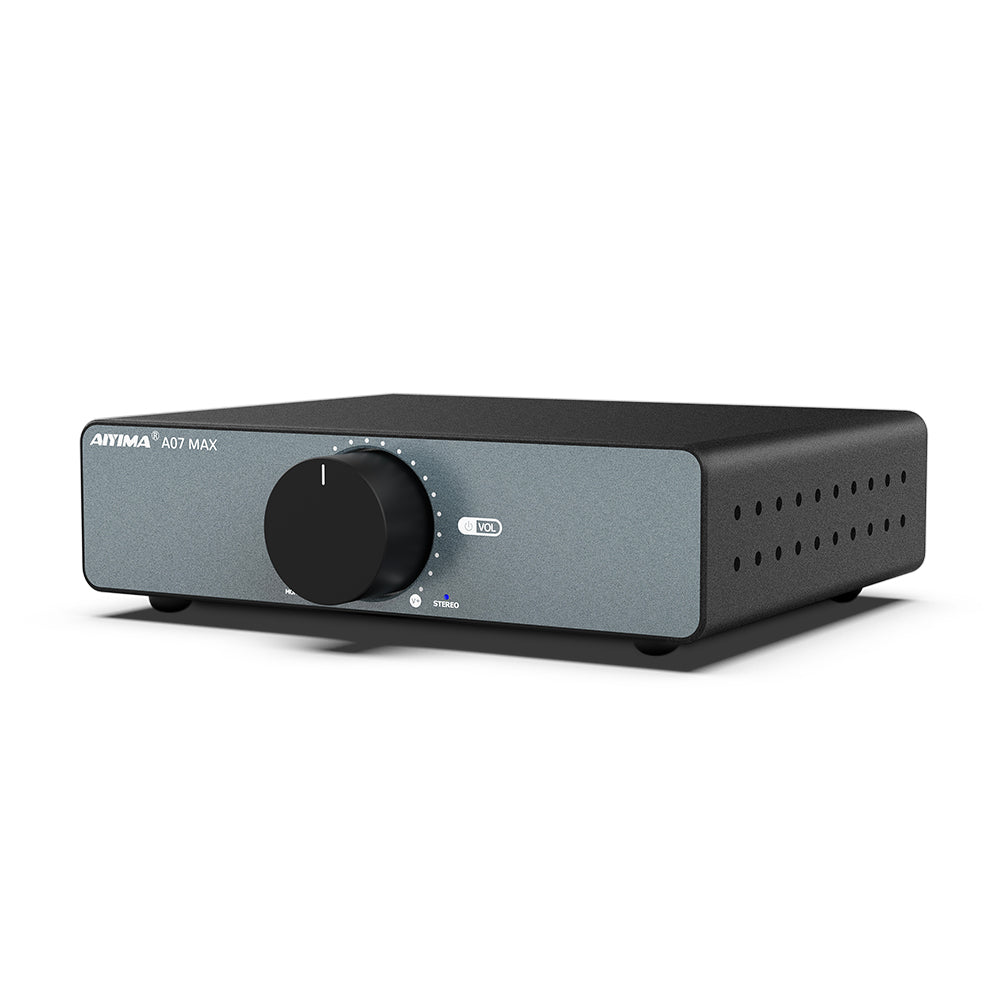

AIYIMA A07 MAX

Power Amplifier

Size

QTY

PRICE $70.00

PRODUCT DETAILS

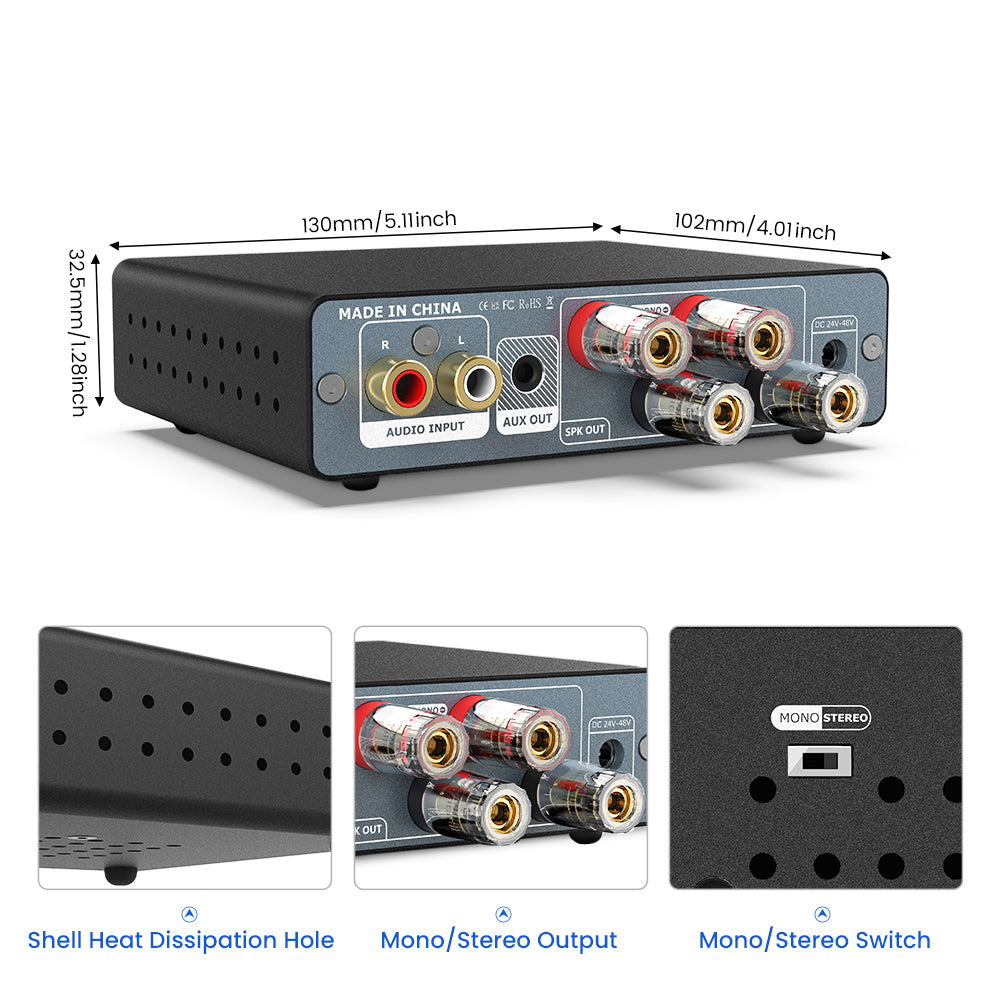

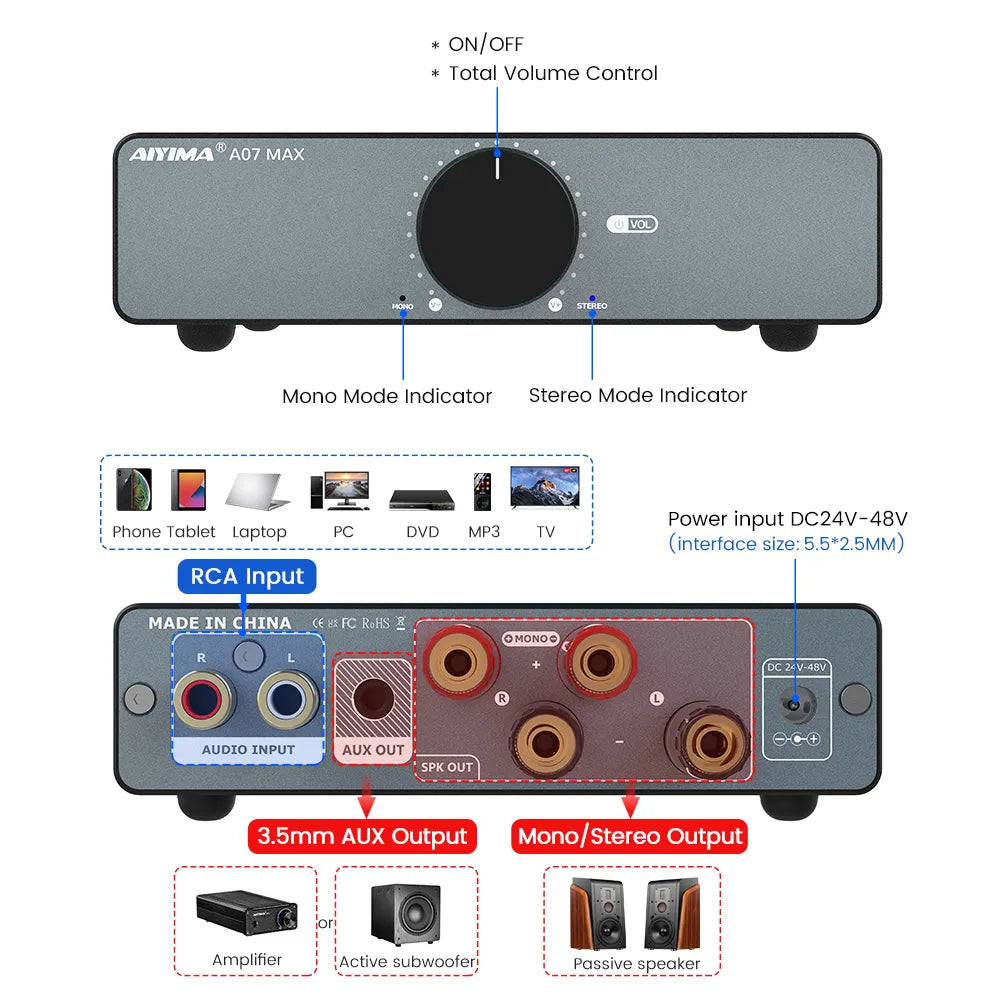

Model : AIYIMA A07 MAX

Product name:A07 MAX TPA3255 Power Amplifier

Stereo Max Output Power(switch stereo mode)：300Wx2 / 4Ω（48V/12A）

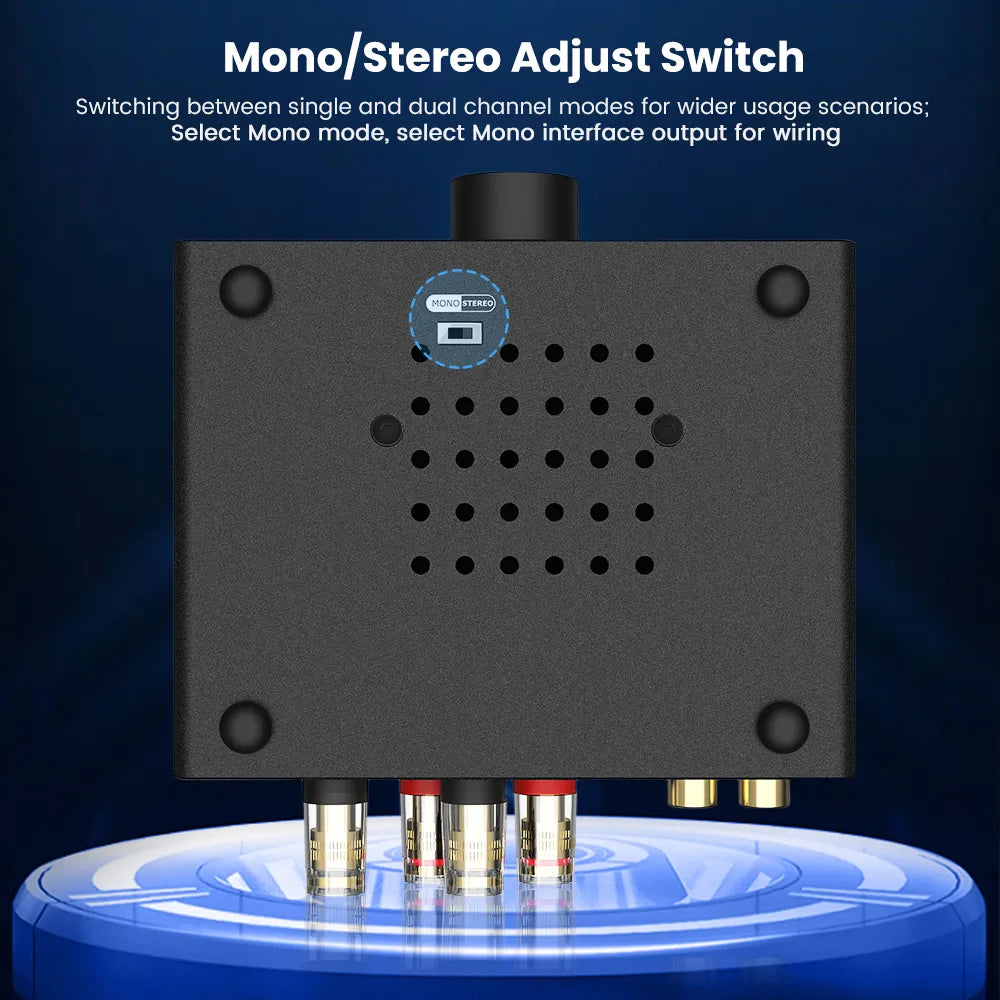

Mono Max Output Power(switch mono mode)：600W/ 2Ω（48V/12A）

(R+ connect to speaker +, L+ connect to speaker -)

Working Voltage：DC24-48V，5A or more

Replaceable Op-Amp Chips:OPA2604AP, OPA2134, MUSEO1/02/03, LME49720NA, LM4562, AD827AQ, etc

AUX OUT: active nsubwoofer or power amplifier

3.5mm AUX OUT as output connect to next amplifier without volume control

THD：0.007%

SNR：≥110dB

Input sensitivity：1V

AUX Maximum Output level：1V

Frequency response 20Hz-20KHz（±1dB）

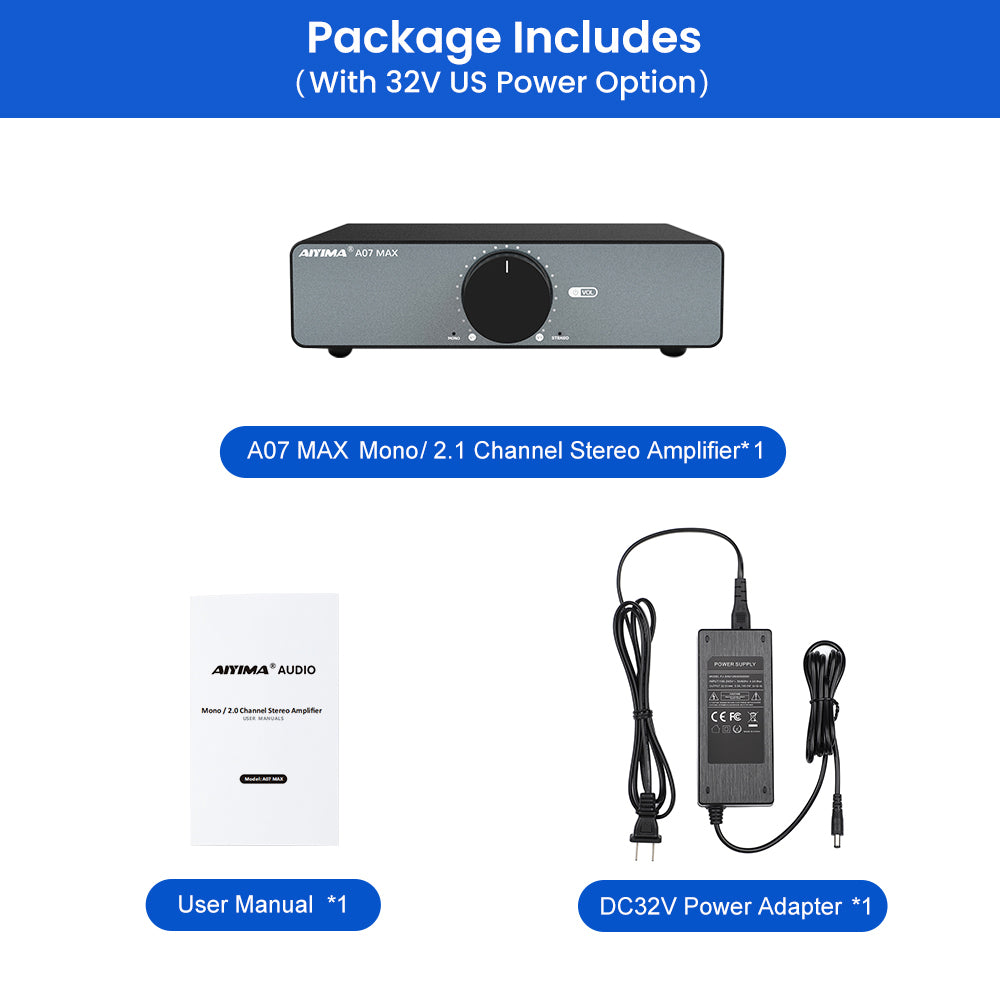

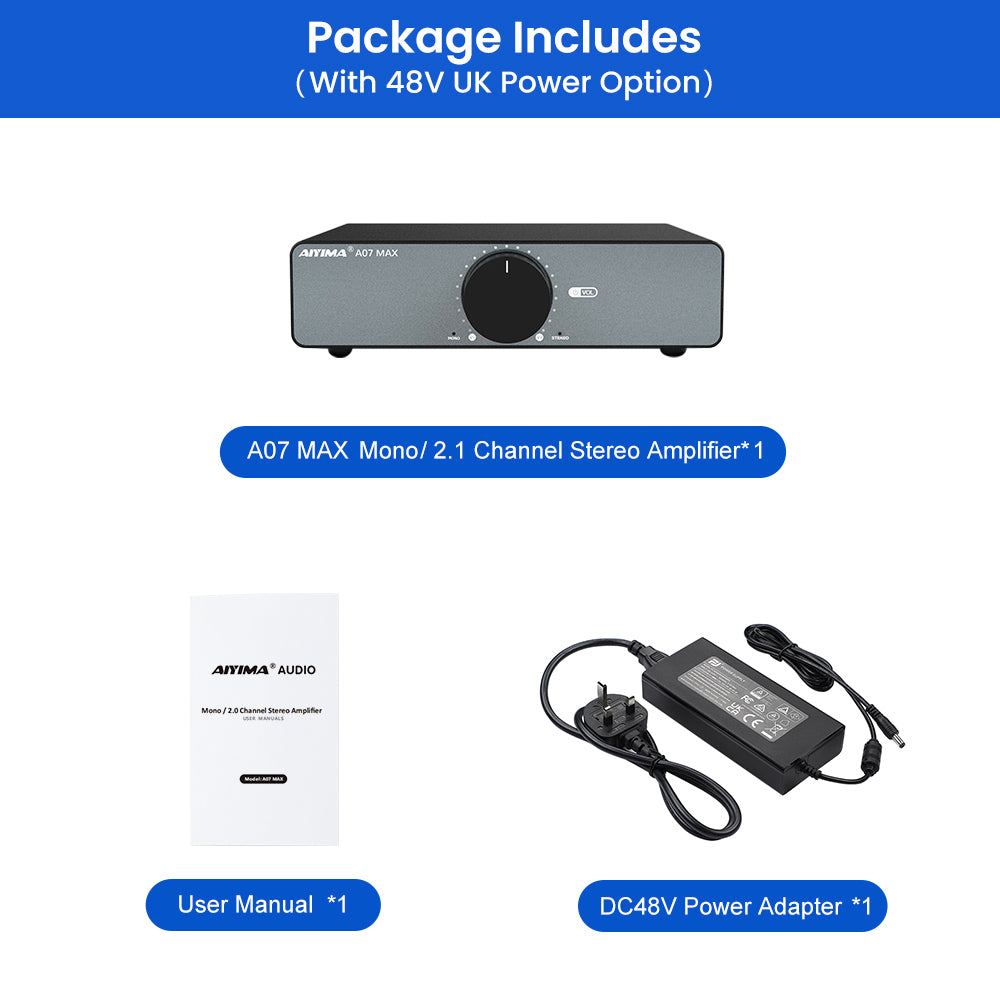

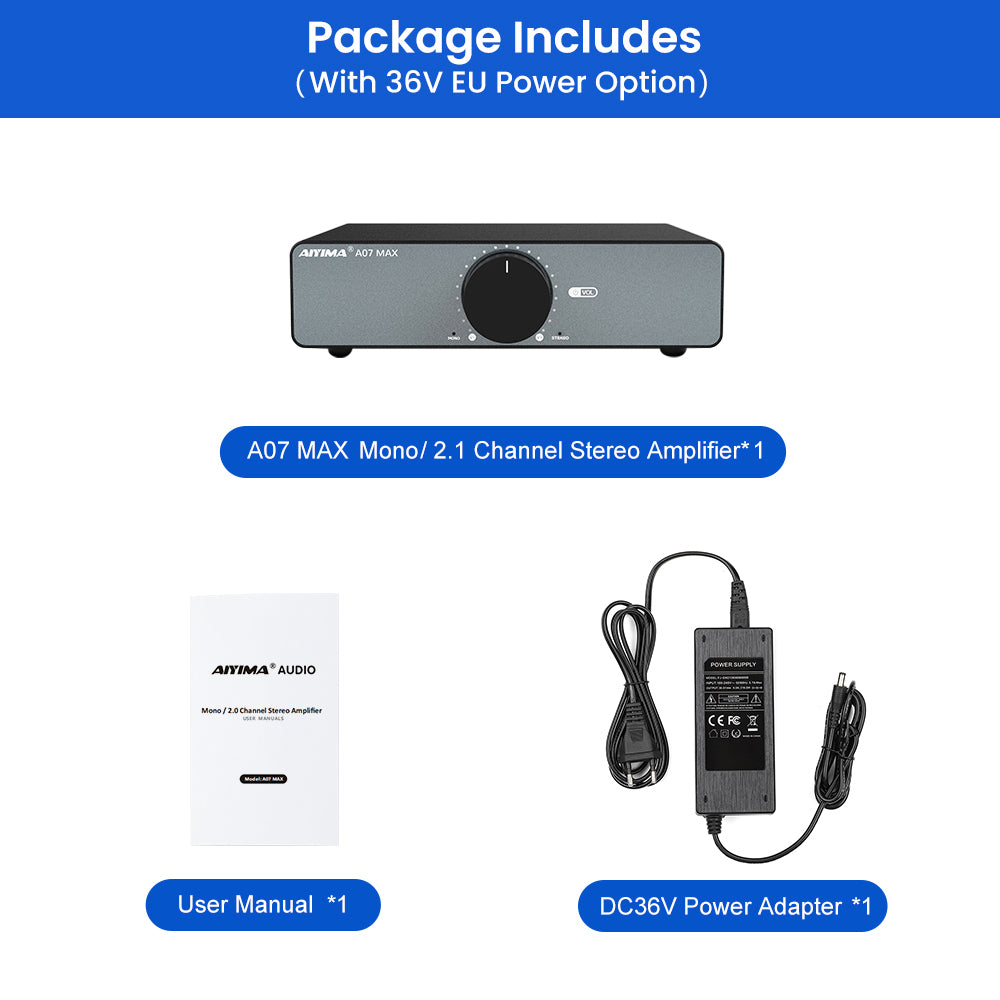

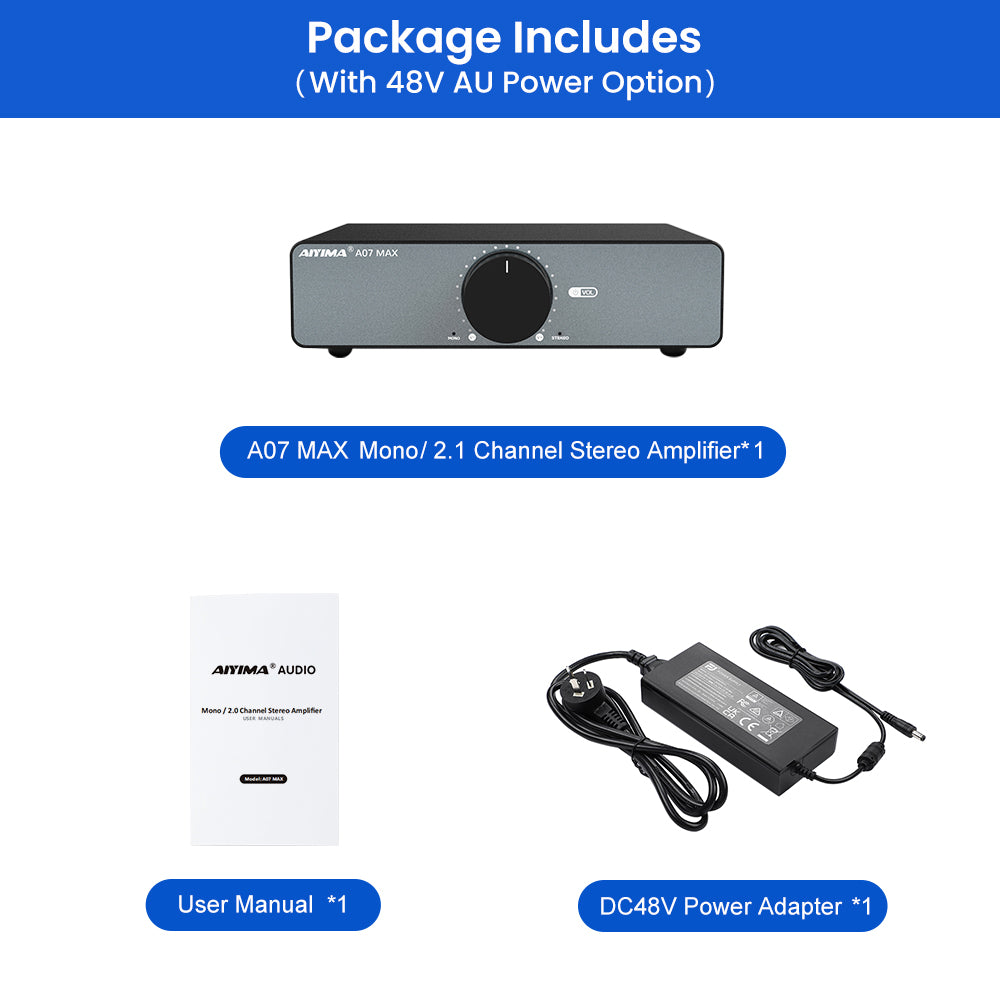

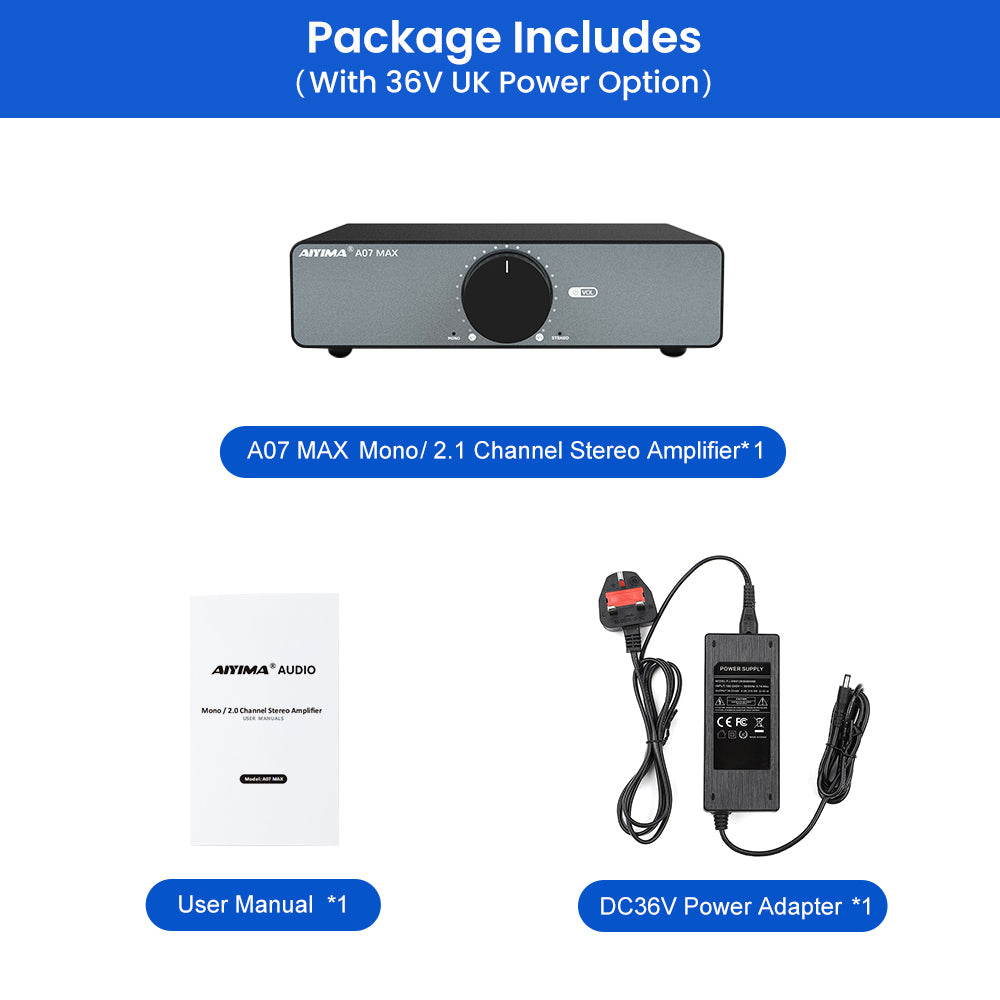

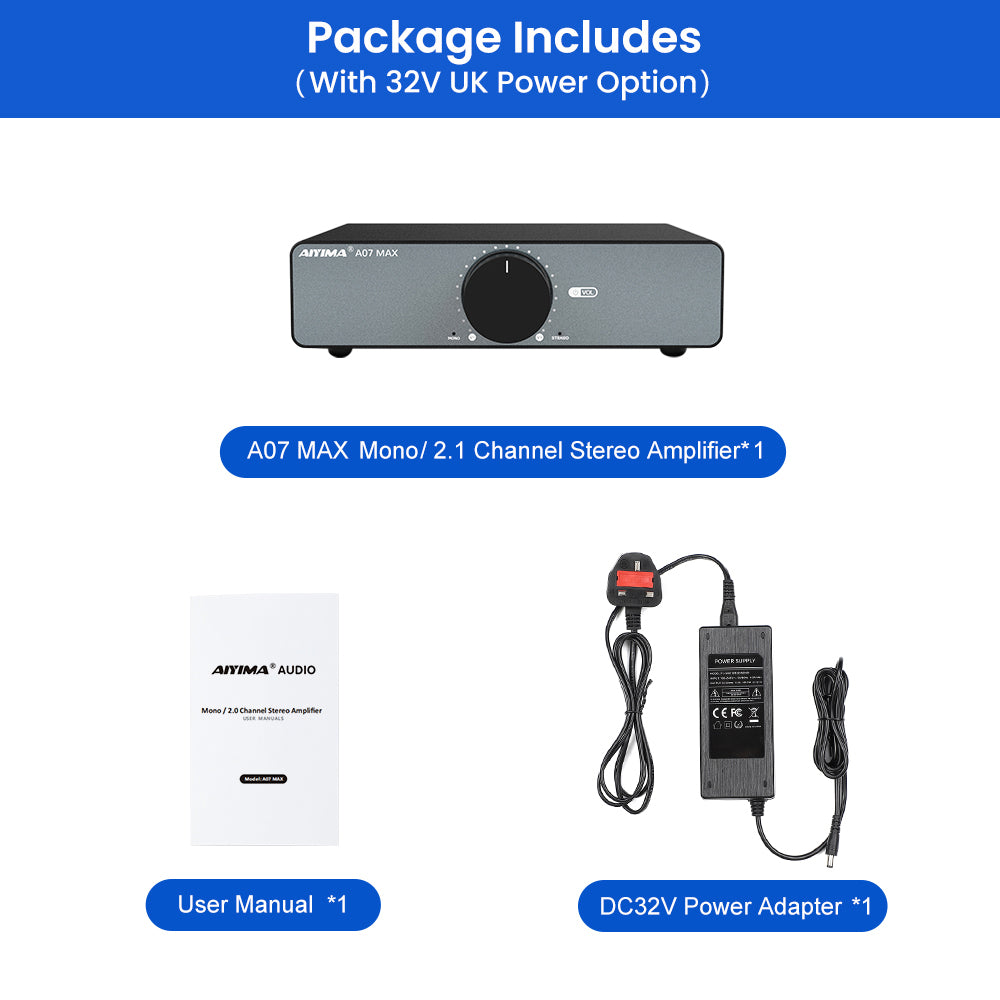

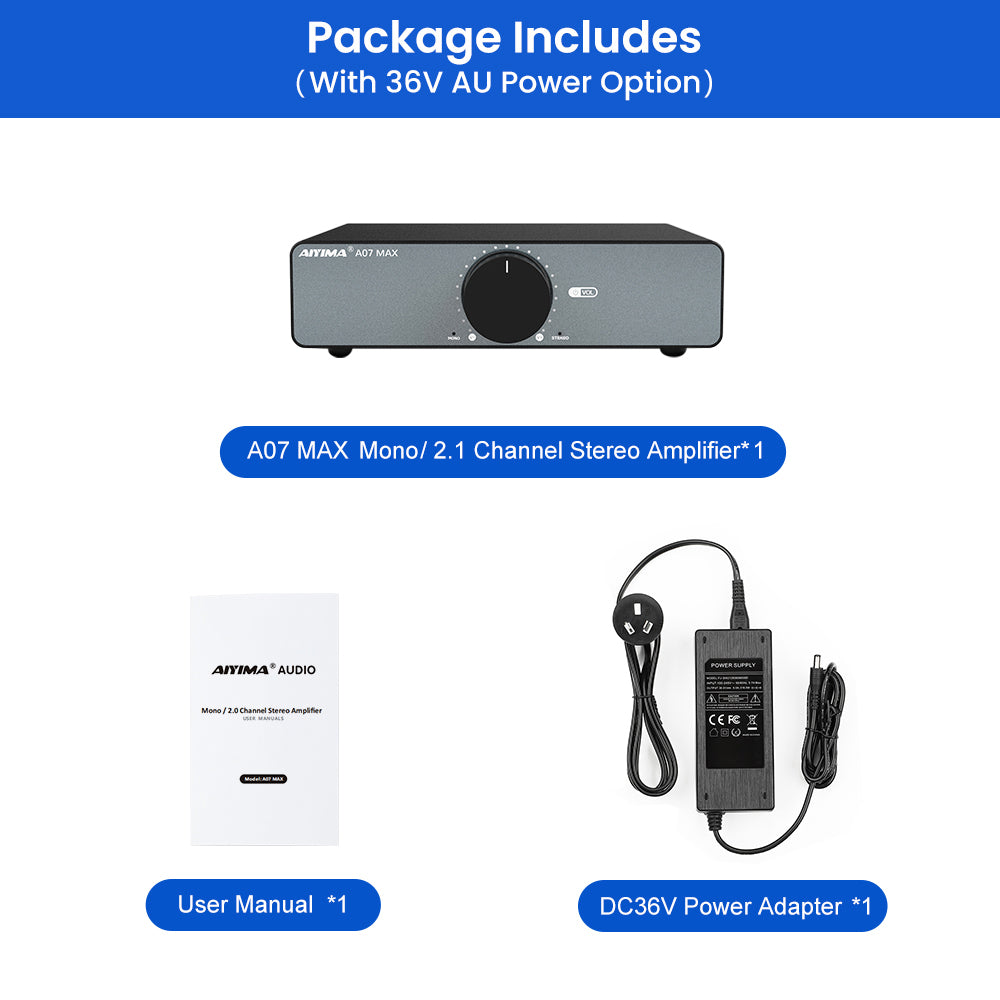

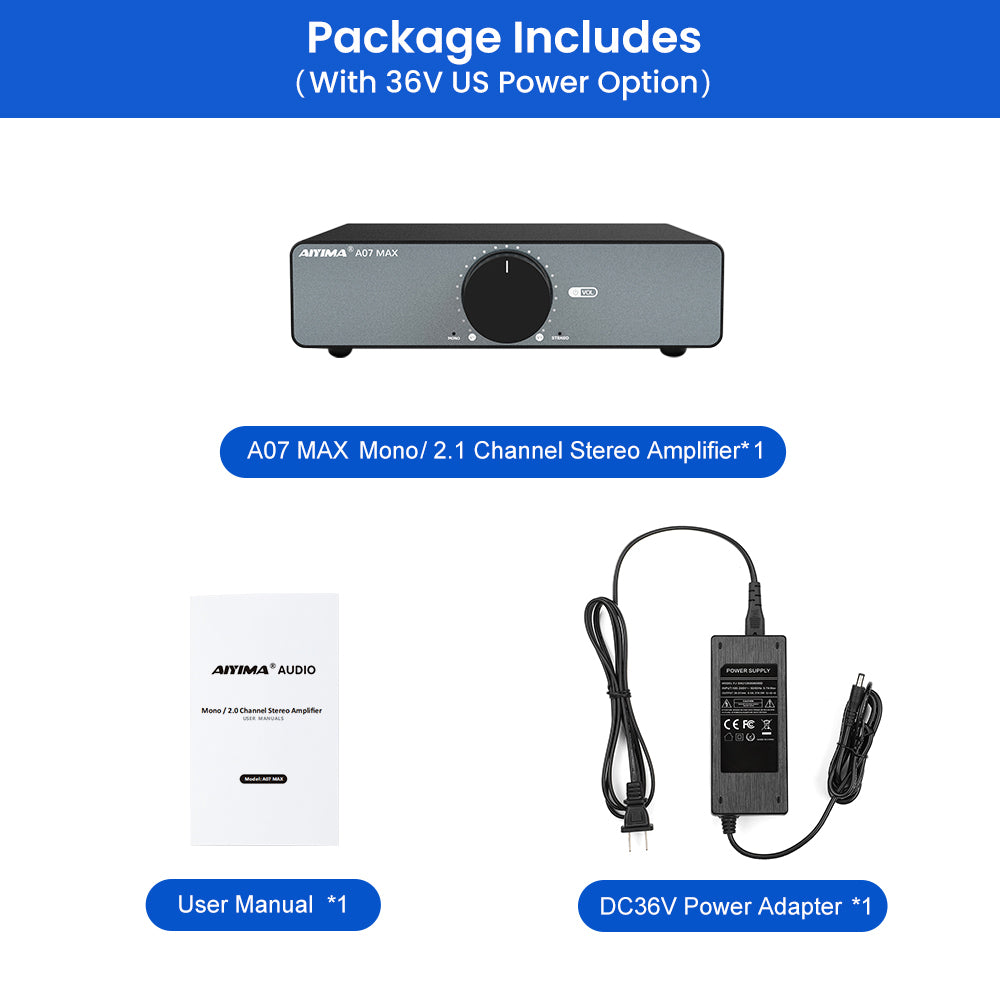

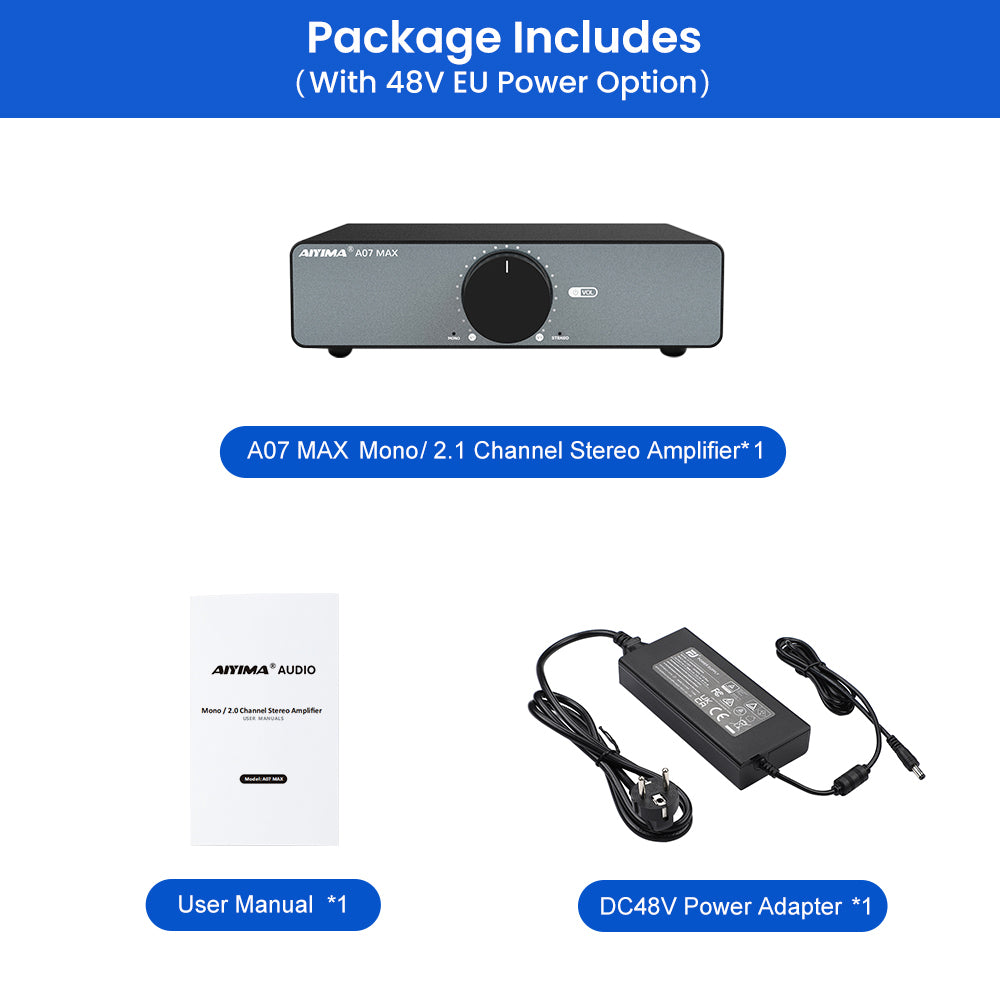

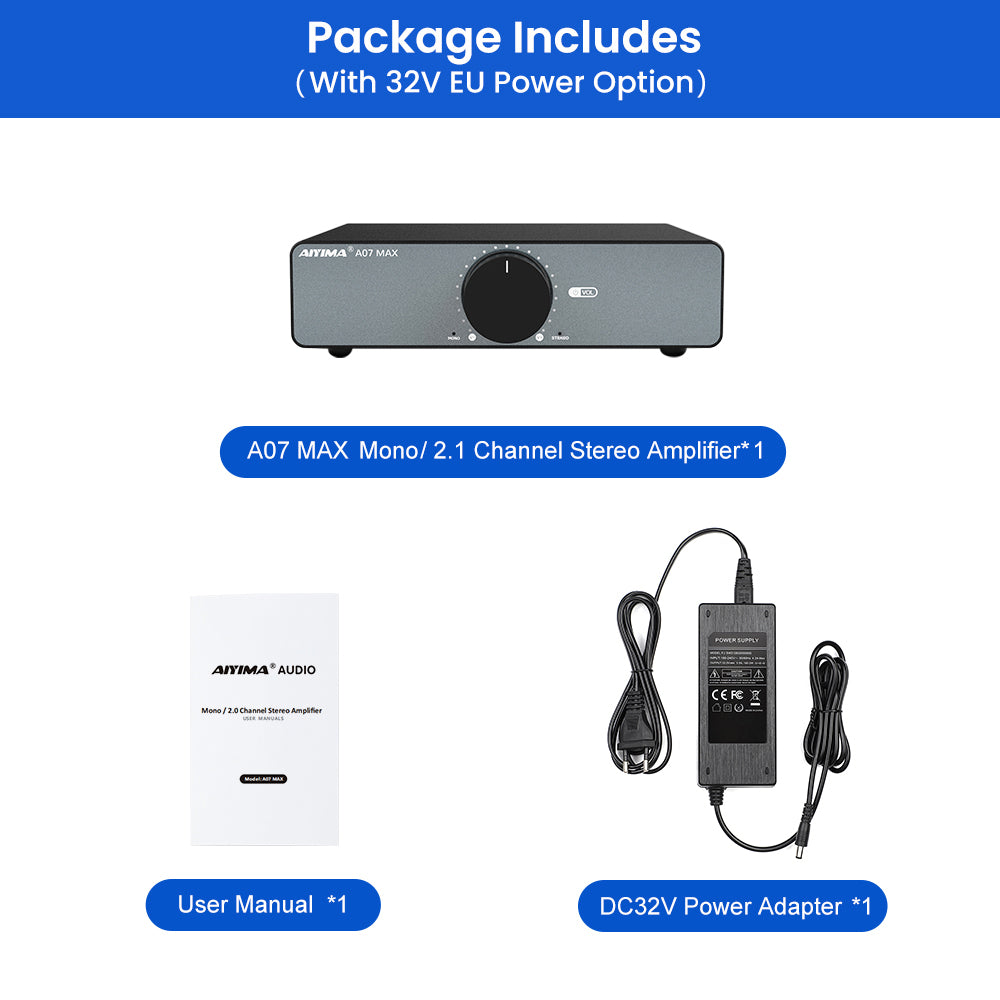

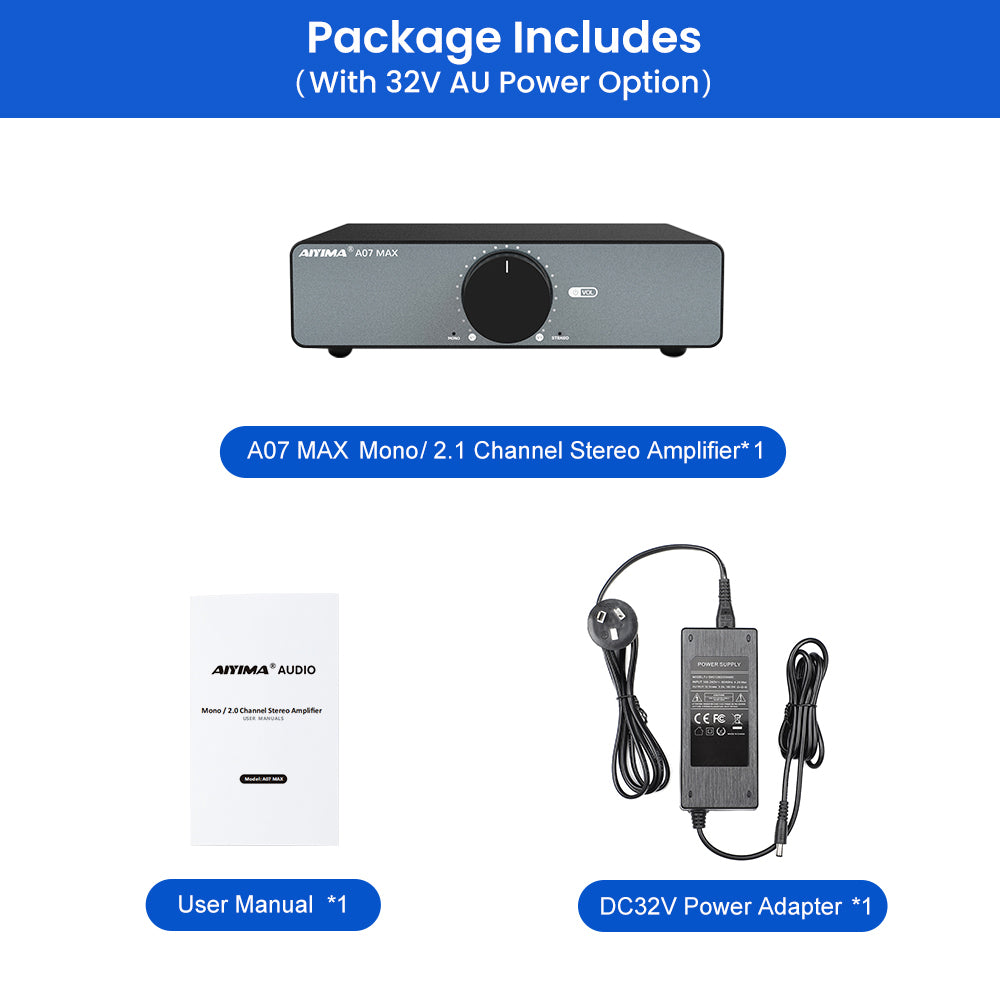

Package included:

1Pcs A07 MAX

1Pcs Power Adapter(Optional)

Q: All my cables are connected, but there is no sound output?

A: 1. Check if the machine has started and if the indicator light is on.

2. Is the selection of mono/stereo mode and the connection of the speaker interface correct.

3. If the above two points are normal, check whether the playback device of the input sound

source is paused, muted, or the volume is at the minimum.

Q: Why is the sound distorted?

A: The input level may be too large. If the volume of the sound source equipment is adjusted

to the maximum, and the volume of the machine is also adjusted to the maximum, it is

easy to be distorted. At this time, turn down the volume of the sound source input device

or machine.

Q: Why does the volume of the machine remain the same, but the sound level

is different when connecting to different audio sources (for example,

connect a CD first, then a mobile phone)?

A: The amplitude of electrical signals output by different playback devices is different. For

example, mobile phones are usually 0.35V, while CDs are 1V. The natural sound size is

different.

Q: Why does the horn emit a loud electrical current sound or buzzing sound?

A: 1. If you are not using the original standard power supply, please replace the power supply

and test again.Many power supplies in the market have interference, which will cause

current sound.

2. When the signal line without shielding is used, there will be interference signals entering

the power amplifier for amplification. It is recommended that you replace the signal line

with shielding.

3. There is still noise after troubleshooting the above two points，Please confirm the noise

is from the external or the internal. Disconnect all inputs, only retain the power supply

and output cable, if the noise disappears, that means the noise is from the audio input.

If the noise is still there, the noise may be caused by interference with the power supply

or generated inside the amplifier

Q: Why there is no sound or very little sound after the amplifier is connected

to the speaker?

A: 1. Please check the audio source has been turned on and the volume is not at the minimum.

2. Please confirm whether the speaker and amplifier match ( For example, the speaker is

fixed resistance or fixed voltage, the power of speaker is too much over the power of the

amplifier etc).

Q: What are the reasons for the unbalanced left and right volume of the s

peakers and how to eliminate them?

A: Please check audio source, input cable, volume potentiometer (some amplifiers have

balanced control or separate volume control of left and right channel ), speaker cable,

speakers (whether the position and the distance is symmetrical) and other factors.

Q: Why is there a thumping sound when swithing on/off?

A: Please confirm the on-off sequence is correct, normally it follows the order of signal

transmission when turn on: audio source → preamp / DAC → amplifier → speaker. (The

sequence is reversed when switching off. As the internal capacitors will be discharged for a

while after shutdown. If turn off the preamp firstly and then turn off amplifier, impact

sound will be easily caused which may damage the amplifier or speaker in severe cases).

COMPLETE SYSTEM

RECOMMENDED SETUP

For the complete desktop system, we recommend
T1PRO*1+A07MAX*1
