AIYIMA A07 MAX
AIYIMA A07 MAX
Sale price$100.00
Model : AIYIMA A07 MAX
Product name:A07 MAX TPA3255 Power Amplifier
Stereo Max Output Power(switch stereo mode)：300Wx2 / 4Ω（48V/12A）
Mono Max Output Power(switch mono mode)：600W/ 2Ω（48V/12A）
(R+ connect to speaker +, L+ connect to speaker -)
Working Voltage：DC24-48V，5A or more
Replaceable Op-Amp Chips:OPA2604AP, OPA2134, MUSEO1/02/03, LME49720NA, LM4562, AD827AQ, etc
AUX OUT: active nsubwoofer or power amplifier
3.5mm AUX OUT as output connect to next amplifier without volume control
THD：0.007%
SNR：≥110dB
Input sensitivity：1V
AUX Maximum Output level：1V
Frequency response 20Hz-20KHz（±1dB）
Package included:
1Pcs A07 MAX
1Pcs Power Adapter(Optional)
Q: All my cables are connected, but there is no sound output?
A: 1. Check if the machine has started and if the indicator light is on.
2. Is the selection of mono/stereo mode and the connection of the speaker interface correct.
3. If the above two points are normal, check whether the playback device of the input sound
source is paused, muted, or the volume is at the minimum.
Q: Why is the sound distorted?
A: The input level may be too large. If the volume of the sound source equipment is adjusted
to the maximum, and the volume of the machine is also adjusted to the maximum, it is
easy to be distorted. At this time, turn down the volume of the sound source input device
or machine.
Q: Why does the volume of the machine remain the same, but the sound level
is different when connecting to different audio sources (for example,
connect a CD first, then a mobile phone)?
A: The amplitude of electrical signals output by different playback devices is different. For
example, mobile phones are usually 0.35V, while CDs are 1V. The natural sound size is
different.
Q: Why does the horn emit a loud electrical current sound or buzzing sound?
A: 1. If you are not using the original standard power supply, please replace the power supply
and test again.Many power supplies in the market have interference, which will cause
current sound.
2. When the signal line without shielding is used, there will be interference signals entering
the power amplifier for amplification. It is recommended that you replace the signal line
with shielding.
3. There is still noise after troubleshooting the above two points，Please confirm the noise
is from the external or the internal. Disconnect all inputs, only retain the power supply
and output cable, if the noise disappears, that means the noise is from the audio input.
If the noise is still there, the noise may be caused by interference with the power supply
or generated inside the amplifier
Q: Why there is no sound or very little sound after the amplifier is connected
to the speaker?
A: 1. Please check the audio source has been turned on and the volume is not at the minimum.
2. Please confirm whether the speaker and amplifier match ( For example, the speaker is
fixed resistance or fixed voltage, the power of speaker is too much over the power of the
amplifier etc).
Q: What are the reasons for the unbalanced left and right volume of the s
peakers and how to eliminate them?
A: Please check audio source, input cable, volume potentiometer (some amplifiers have
balanced control or separate volume control of left and right channel ), speaker cable,
speakers (whether the position and the distance is symmetrical) and other factors.
Q: Why is there a thumping sound when swithing on/off?
A: Please confirm the on-off sequence is correct, normally it follows the order of signal
transmission when turn on: audio source → preamp / DAC → amplifier → speaker. (The
sequence is reversed when switching off. As the internal capacitors will be discharged for a
while after shutdown. If turn off the preamp firstly and then turn off amplifier, impact
sound will be easily caused which may damage the amplifier or speaker in severe cases).
D
Sounds pretty good. Spring for a more expensive power supply for the best results
Ó
Very good
Y

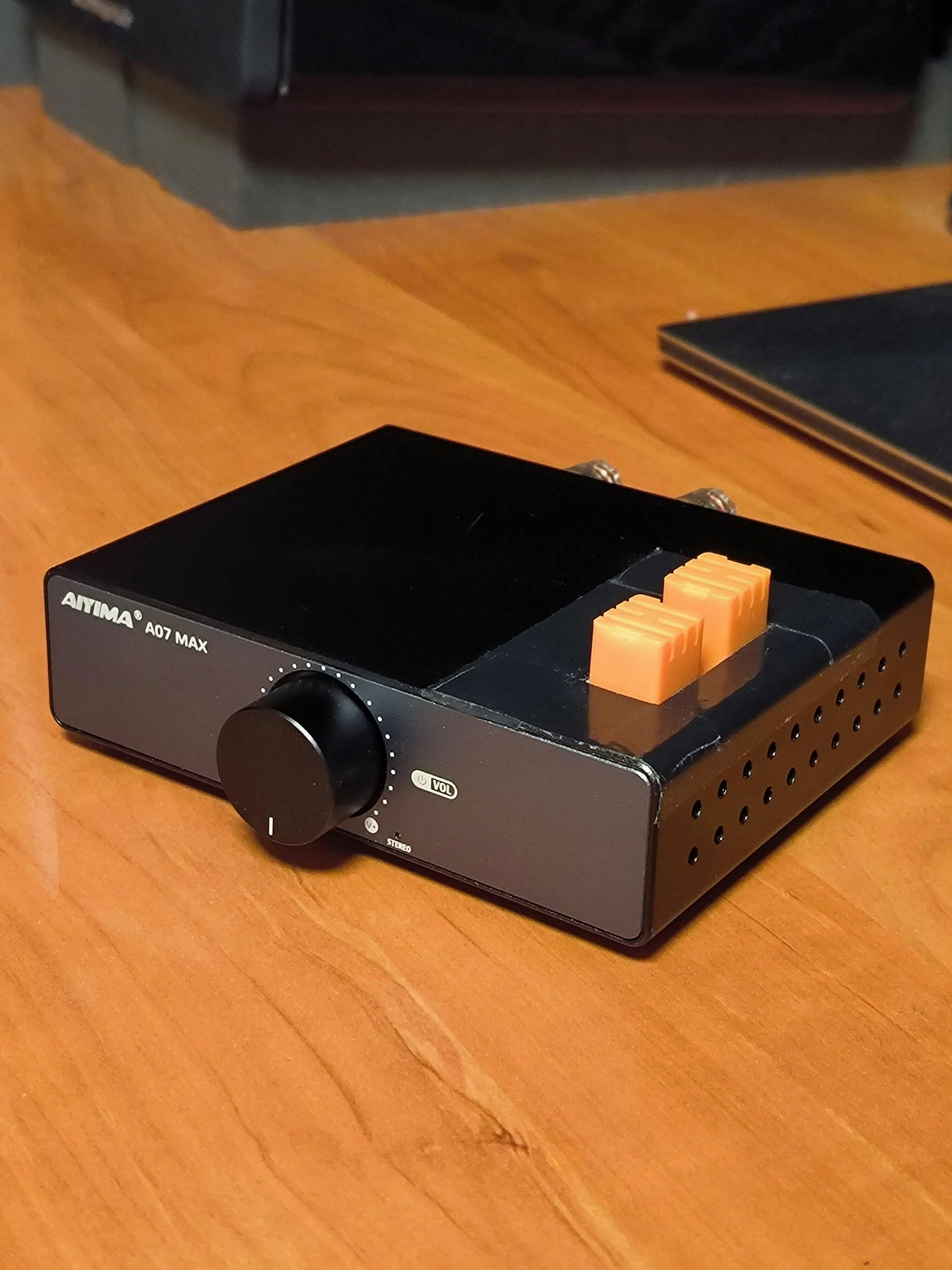

I little cut on top cover and Bursons V6C are ready to go, easy. plug and play. Better cooling for the opamps and for the amp as well. Aiyima should produce it like this. Bursons V7 are shorter, so removing them would require also removing the front panel and use tool to lift them from the socket.
J
Excellent value for the casual hobbyist or budding audiophile-to-be-someday to dip their toes into that world. These amps sound great, are quite efficient, and with the stereo/monoblock configuration switching it's easy and affordable to add a second to provide plenty of clean power.
H
Really good sounding small amplifier
