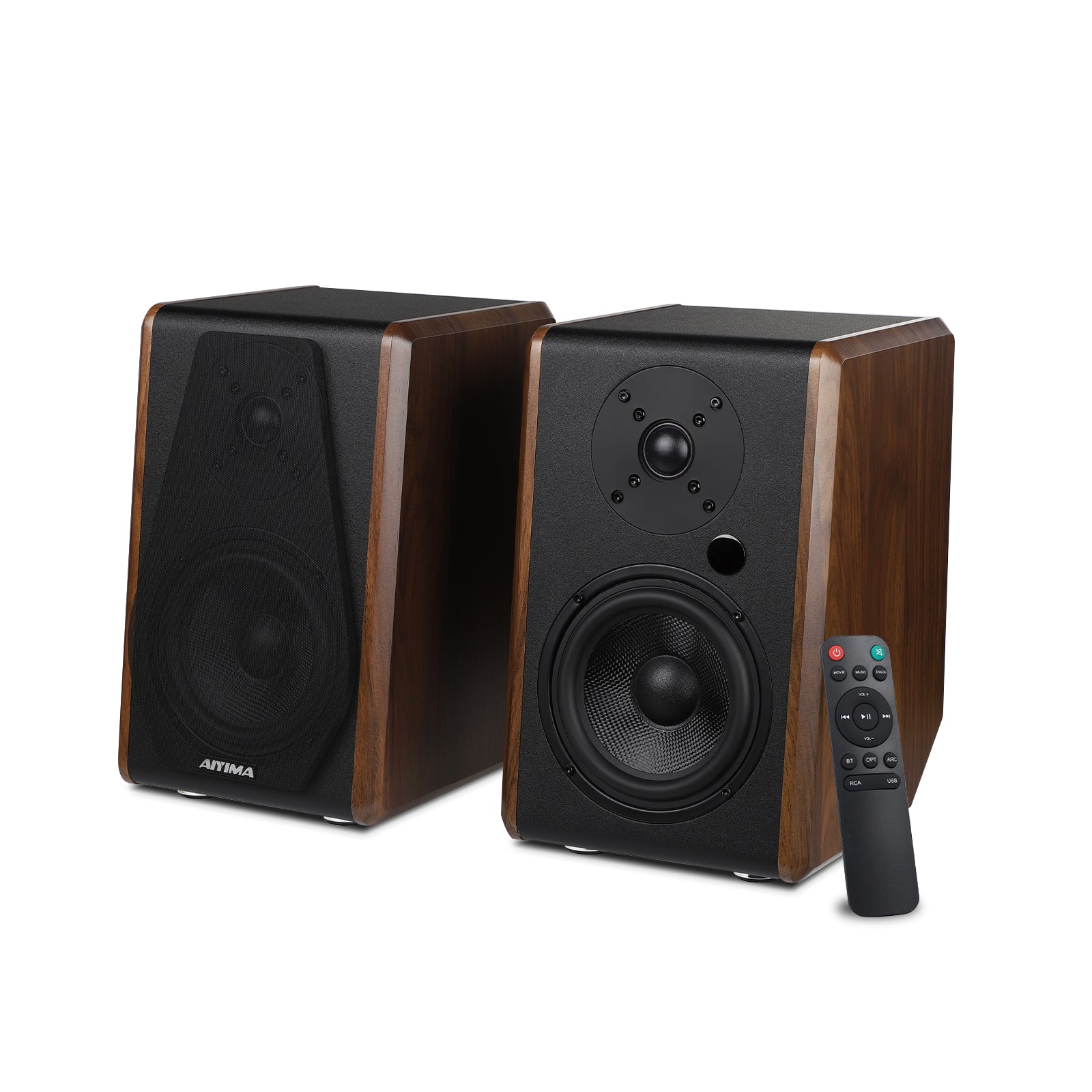

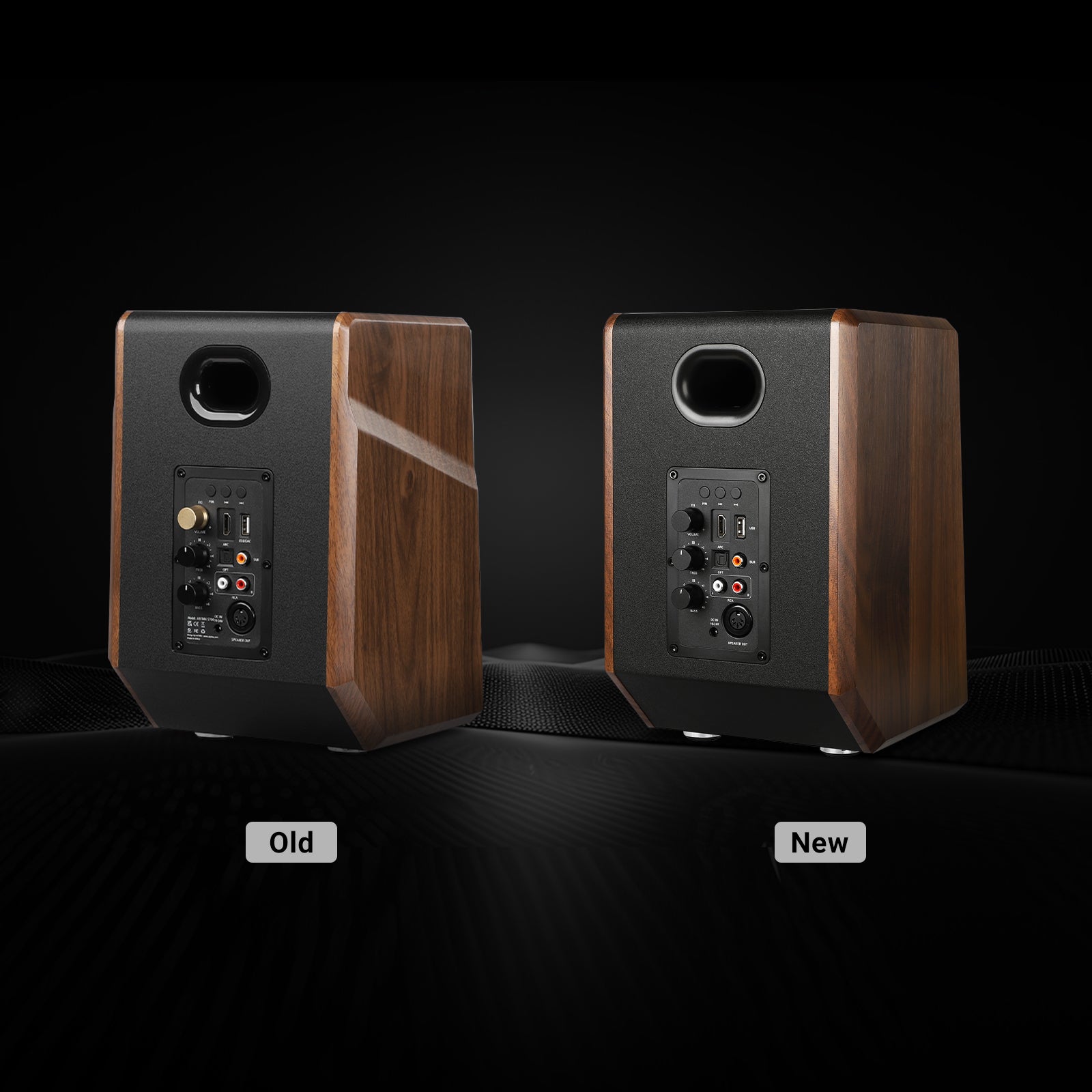

AIYIMA S700

Product color:

Front/rear panel of wooden box: matte black

Both sides of wooden box: brown

Channel: 2.0 channel (left channel + right channel)

Bluetooth version: 5.0

Power: RMS 100W

Signal-to-noise ratio: ≧85dB

Distortion: <1%

Frequency response range: 35HZ-20KHZ

Power input: 24V2A

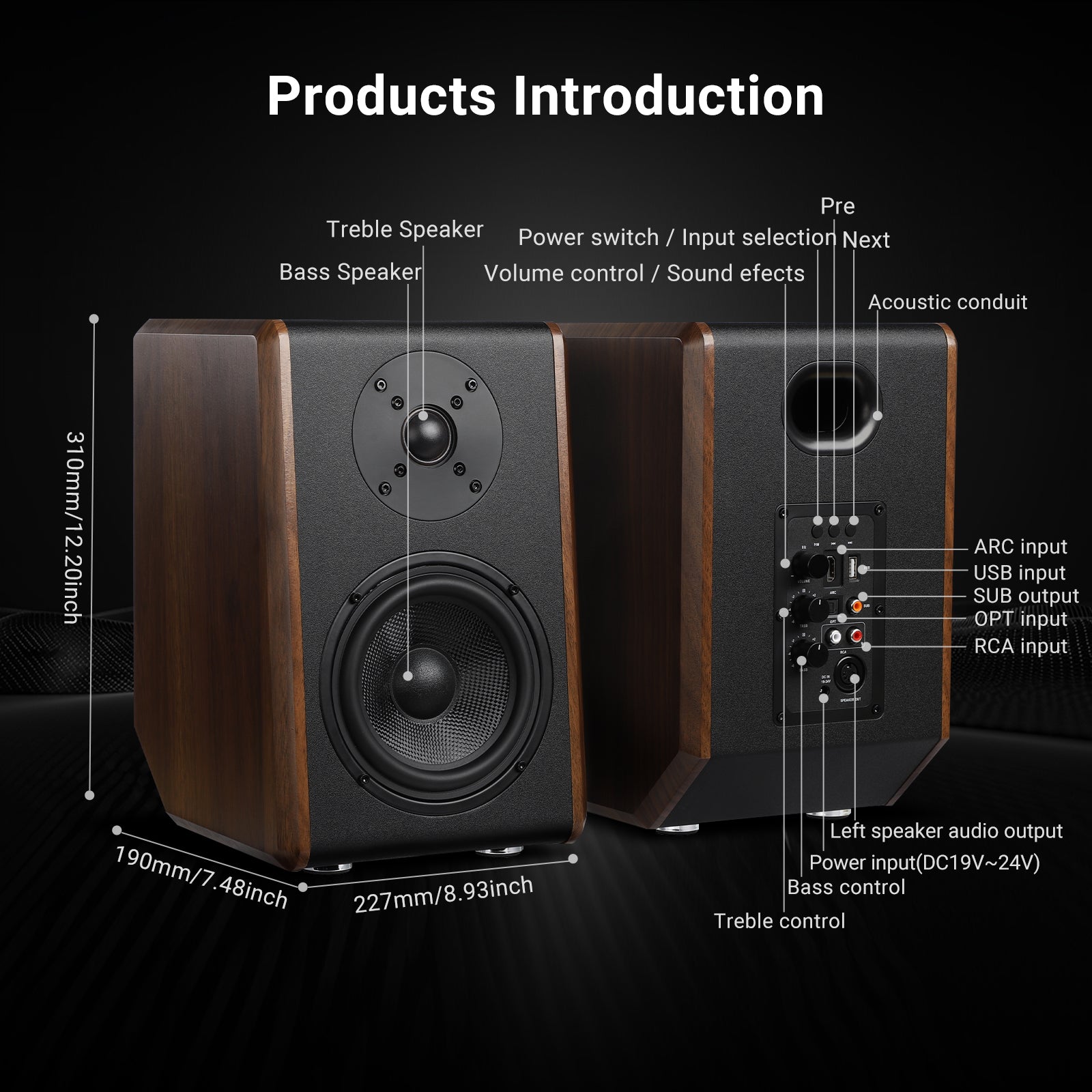

Audio source input: Bluetooth+optical fiber+ARC+RCA+USB

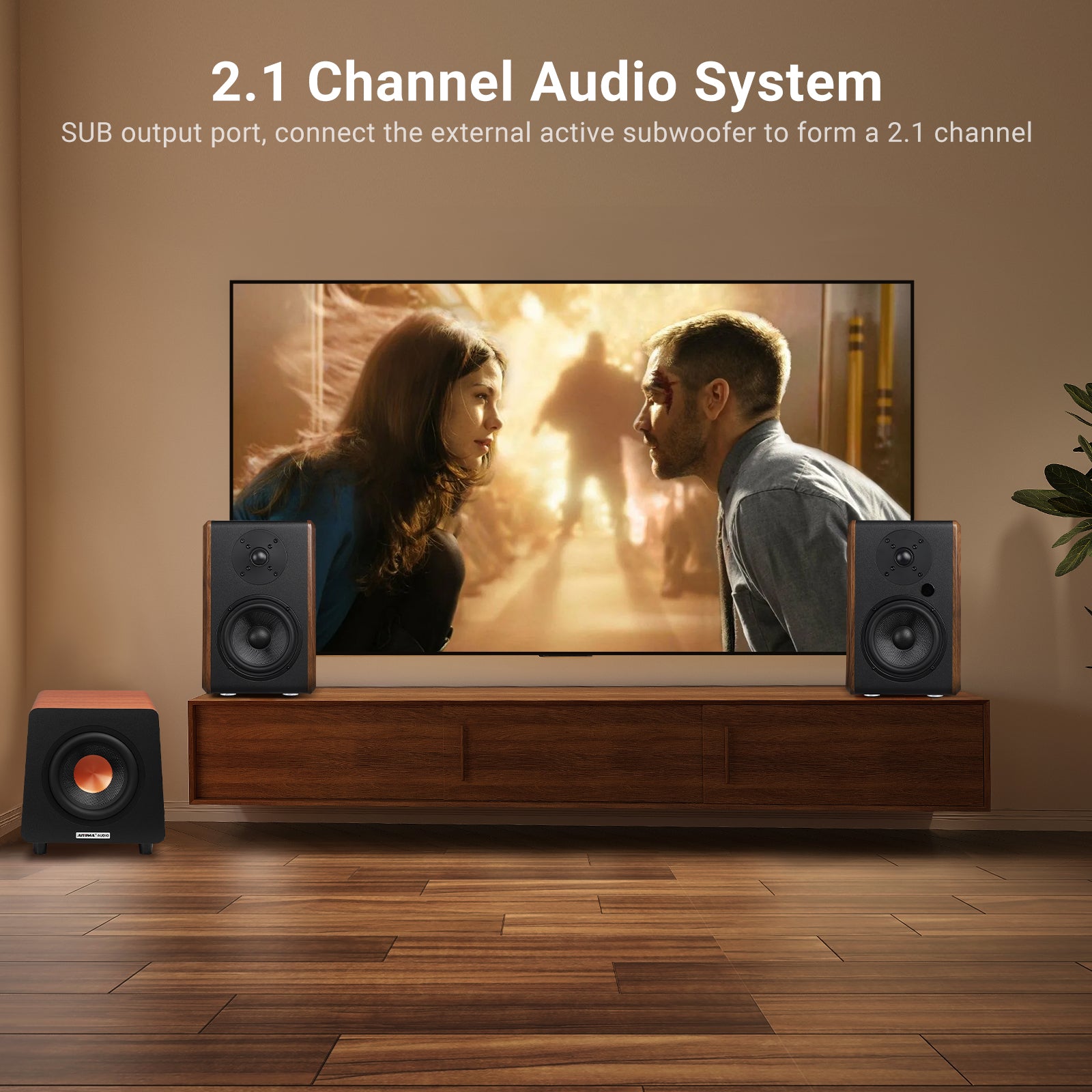

Audio output: SUB

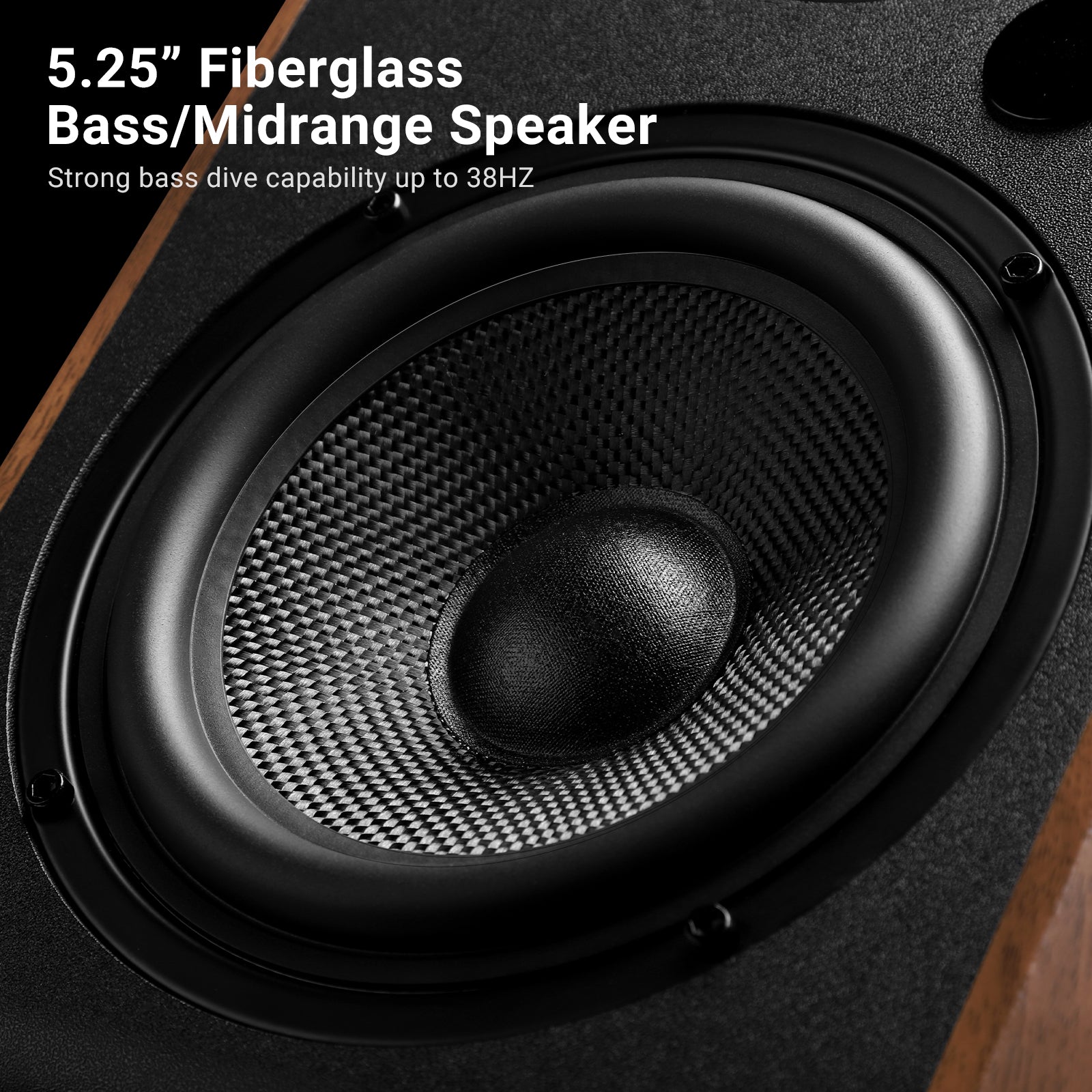

Speaker: "5.25-inch mid-bass: 4Ω 30W *2

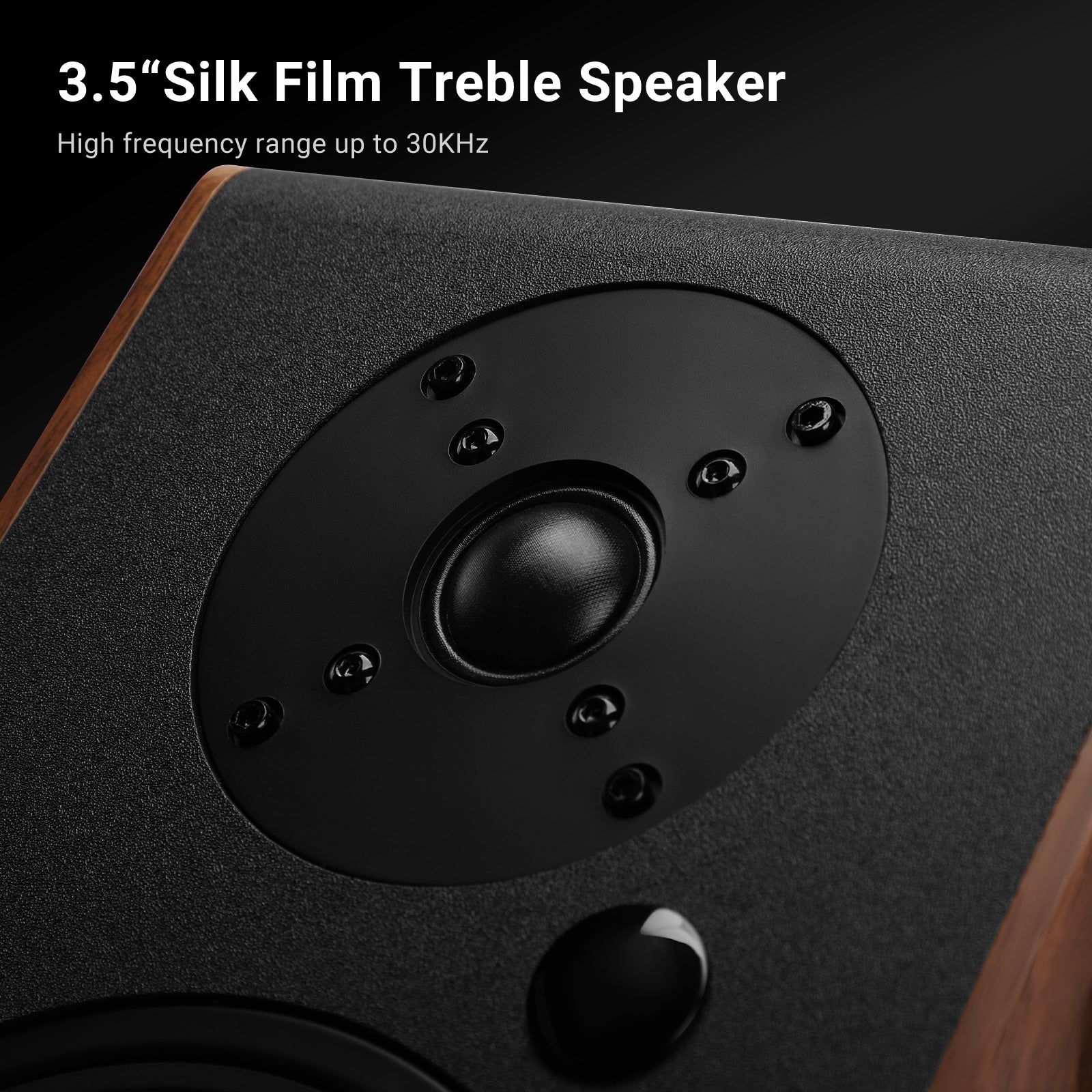

3.5-inch dome tweeter: 6Ω/10W *2"

Status indication: RGB/three-color LED

Control method: infrared remote control/button/knob

Sound effect: music/cinema/dialogue

Main unit size: length 190MM*width 227MM*height 310MM

Sub unit size: length 190MM*227MM wide*310MM high

Material:

Main unit: MDF+ABS+net

Sub unit: MDF+ABS+net

Hardware configuration

Main control chip: BP1048B2

Amplifier chip: AC3128A *2

Bluetooth domain name: AIYIMA S700
