A502T Manual

1 comment

Thank you very much for choosing our products! Please read this manual carefully before using the product.

A502T Manual Download

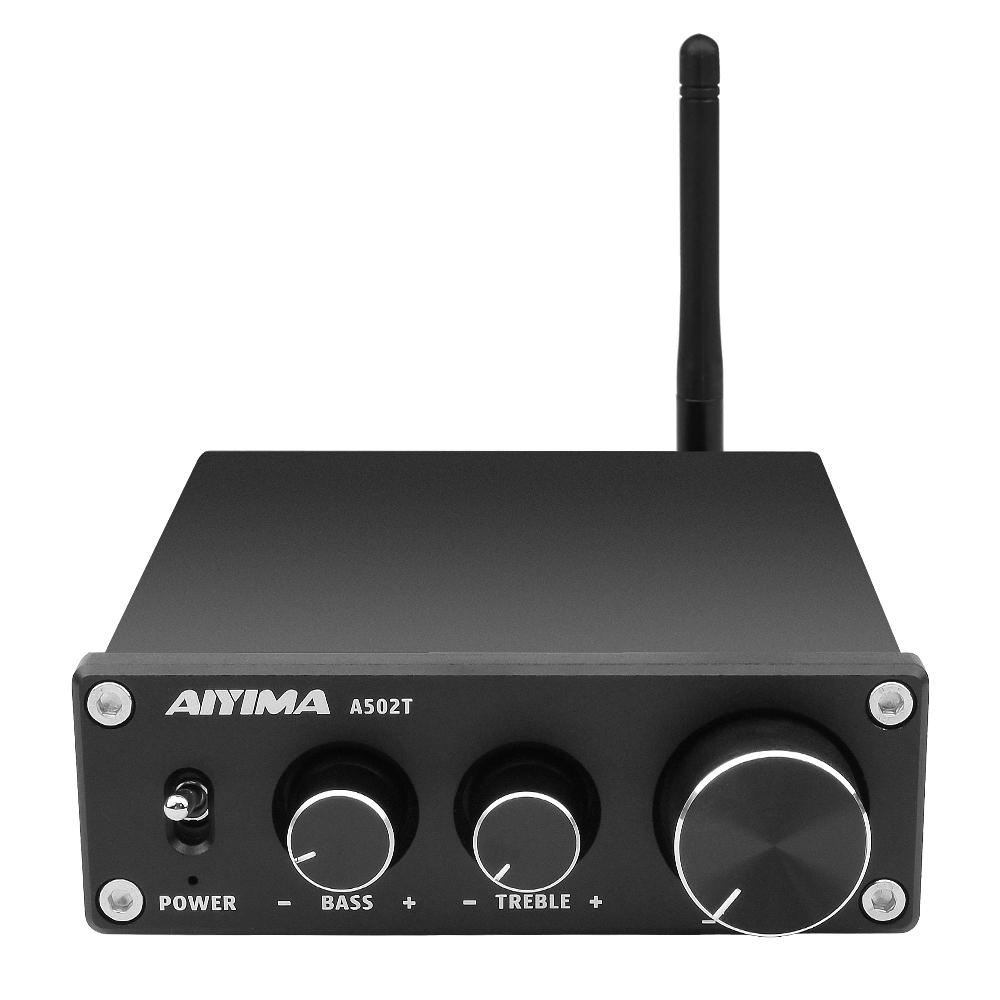

Front & back surfaceinterface of basic Version:

A502T

  • ①…………………………LED INDICATOR LIGHT
  • ②…………………………POWER NO/OFF(Press 3S to start, short press to switch bluetooth or RCA input)
  • ③…………………………VOL+/-(increase clockwise and decrease counterclockwise)
  • ④…………………………Bluetooth antenna (bluetooth is optional)
  • ⑤…………………………Input interface of audio (Such as CD, DAC decoder, mobile phone, TV, etc., red to right channel input, white to left channel input)
  • ⑥…………………………Speaker Output (red to positive, black to negative, L to leftspeaker and R to rightspeaker)
  • ⑦…………………………Power interface (DC power shall not exceed 24V)



Front & back surface interface of headphone version

A502T

  • ①…………………………LED INDICATOR LIGHT
  • ②…………………………POWER NO/OFF(Press 3S to start, short press to switch bluetooth or RCA input)
  • ③…………………………HEADPHONE OUTPUT 6.35JACK
  • ④…………………………VOL+/- (increase clockwise and decrease counterclockwise)
  • ⑤…………………………Bluetooth antenna (bluetooth is optional)
  • ⑥…………………………Input interface of audio (Such as CD, DAC decoder, mobile phone, TV, etc., red to right channel input, white to left channel input)
  • ⑦…………………………Speaker Output (red to positive, black to negative, L to leftspeaker and R to rightspeaker)
  • ⑧…………………………Power interface (DC power shall not exceed 24V)



Front & back surface interface of volume adjustment & mechanical switch version

A502T

  • ①…………………………POWER NO/OFF
  • ②…………………………LED INDICATOR LIGHT
  • ③…………………………Bass Knob (increase clockwise and decrease counterclockwise)
  • ④…………………………Treble Knob (increase clockwise and decrease counterclockwise)
  • ⑤…………………………VOL+/- (increase clockwise and decrease counterclockwise)
  • ⑥…………………………Bluetooth antenna (bluetooth is optional)
  • ⑦…………………………BT/RCA Option switch
  • ⑧…………………………Input interface of audio (Such as CD, DAC decoder, mobile phone, TV, etc., red to right channel input, white to left channel input)
  • ⑨…………………………Speaker Output (red to positive, black to negative, L to leftspeaker and R to rightspeaker)
  • ⑩…………………………Power interface (DC power shall not exceed 24V)



Front & back surface interface of volume adjustment & software switch version:

A502T

  • ①…………………………LED INDICATOR LIGHT
  • ②…………………………POWER NO/OFF(Press 3S to start, short press to switch bluetooth or RCA input)
  • ③…………………………Bass Knob (increase clockwise and decrease counterclockwise)
  • ④…………………………Treble Knob (increase clockwise and decrease counterclockwise)
  • ⑤…………………………VOL+/- (increase clockwise and decrease counterclockwise)
  • ⑥…………………………Bluetooth antenna (bluetooth is optional)
  • ⑦…………………………Input interface of audio (Such as CD, DAC decoder, mobile phone, TV, etc., red to right channel input, white to left channel input)
  • ⑧…………………………Speaker Output (red to positive, black to negative, L to leftspeaker and R to rightspeaker)
  • ⑨…………………………Power interface (DC power shall not exceed 24V)



Operation Steps:

  1. Make sure the VOL button to the minimum.

  2. Connect the left and right speakers according to the interface instruction of the rear surface, and pay attention to distinguish positive and negative.

  3. Connect the sound source that needs to be used(Use bluetooth transmission to refer to the next step)
  4. Switch to bluetooth for bluetooth input when using bluetooth input, the blue light of bluetooth indicator flickers, and the blue light remains on after the phone is connected successfully

  5. Connect to power.
  6. Press the power switch.

  7. Turn the VOL button clockwise to select the desired volume.
  8. The version with volume adjustment can choose reasonable EQ through rotating potentiometer
  9. After connecting the earphone output, the speaker will automatically disconnect



Specifications:

Maxpower output

50W*2  4Ωload

Frequency Range

20Hz-20kHz(±3dB)

Headphone Maxpower output
(Headphone Version)

70mW  32Ωload

THD

OUTPUT=1W  0.01%

headphone matching impedance

16-64Ω

SNR

98dB

Speaker matching impedance

4-8Ω

Dimension

L118.5*W98*H33MM

Working voltage

DC12-24V

Bare Weight

0.36Kg

Input Sensitivity

0.2mV

Package Dimension

L257*W215*H65MM



Frequently Asked Questions:

Q: All cables are connected, but no sound output?

A: 1. Check if the POWER indicator is on, and turn on the POWER if it is not on.When the indicator light is still not on after turn on the power, you can find a laptop power and connect to test whether it is the machine fault or a power failure.

  1. If the indicator light is on, check whether the VOL knob is in the minimum position. If so,turn clockwise to normal Volume
  2. If both of the above are normal, check the input device if it is paused, mute, or the volume is minimized.

Q: Why does the sound is cracking?

A: when theoutput powerexceeds the normal power of amplifier, there will be a large distortion. you can turn down the front volume or the power amplifier volume, then it is ok.

Q: Why do loudspeakers make a lot of electric noise?

A: if you are not using the original factory standard power supply, please replace the power supply before testing.Many power supply in the market have large interference coefficient, which will cause a lot of current sound.

Q: Why connect signal line, not play music have interferential sound

A: If you use unshielded signal lines, there will be interference signals entering the power amplifier. If you hate the sound, you are advised to use the shielded signal lines or unplug the signal lines.

Q: Why does the amplifier stop working after a period of time?After a period of time off, it was working again

A: Normally in this case, the amplifier is overheat protected, and the output power may have exceeded the designed power, so you can lower the volume a little and try again.

Q: why does the volume of the machine stay the same, while the sound of different audio sources (such as CDS and mobile phones) is different?

A: The output range of different types of audio source devices is different, the mobile phone is usually 0.35mV, and the CD is 1V.The signaloutput amplitude of the sound source will directly influence the volume

Q: Whythe sound of the power amplifier is not very good at the beginning, the high frequency is not clear, but after working for 8 hours the sound is normal?

A: Speaker and amplifier is a very sensitive equipment, also need to know each other, and the matching process, usually thesound will be good after the new power amplifier and the speaker work more than ten hours

Warning:

  1. Please do not open the shell without permission. Improper operation may cause the danger of electric shock.
  2. Please use the power supply of the regular manufacturer, otherwise it will damage the machine.
  3. Please do not use the machine in a high temperature and humidity environment.
