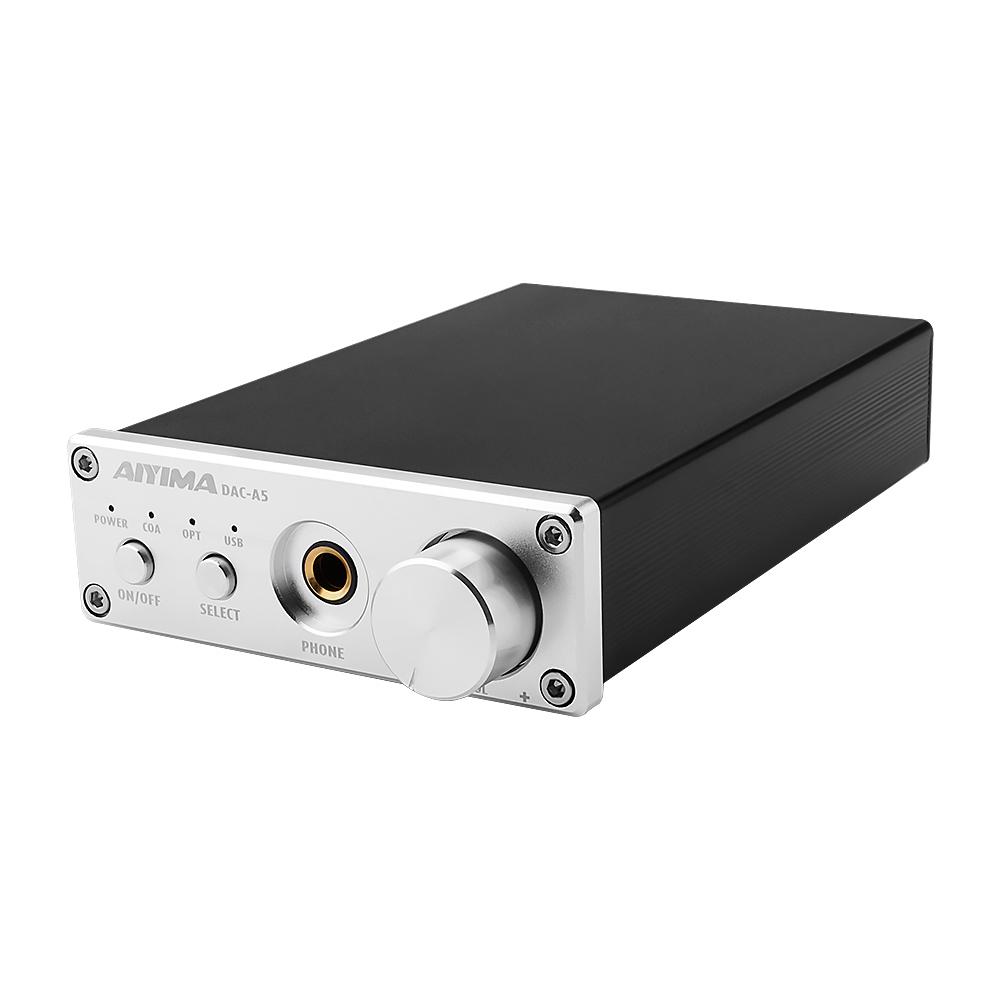

DAC A5 Manual

2 comments

Thank you very much for choosing our products! Please read this manual carefully before using the product.

DAC A5 Manual Download

Basic edition front interface function specification

DAC A5

1 ………………………… LED POWER INDICATOR LIGHT

2 ………………………… COAXIOL WORKING INDICATOR LIGHT

3 ………………………… OPTICAL WORKING INDICATOR LIGHT

4 ………………………… PC-USB WORKING INDICATOR LIGHT

5 ………………………… POWER NO/OFF

6 ………………………… SWITCH OF SIGNAL IMPUT

7 ………………………… 6.35 HEADPHONE JACK

8 ………………………… VOL+/-(increase clockwise and decrease counterclockwise)

Basic edition back interface function specification:

DAC A5

1 ………………………… PC-USB IMPUT

2 ………………………… OPTICAL INPUT

3 ………………………… COAXIAL IMPUT

4 ………………………… AMALOG RCA OUTPUT

5 ………………………… POWER(DC power cann’t beyond 12V)



Basic edition operation Steps:

1.Make sure the VOL turnto the minimum.

2.Connect the external back-end equipment to the output interface of sound source.

3.Connect the sound source that needs to be used.

  1. Connect to power.
  2. Press the power switch.
  3. Press the input signal selection switch to select the signal (the default input of boot is PC-USB)
  4. Turn the VOL button clockwise to select the desired volume.
  5. If the headphone head is 3.5mm, it can be connected with the 6.35rpm 3.5mm adapter configured by the manufacturer(to use RCA analog output, unplug the headset and unplug 6.35 to 3.5 heads)



With bluetooth front and rear panel interface function specification

DAC A5

  • ①………………………… LED POWER INDICATOR LIGHT
  • ②………………………… COAXIOL/ AUX WORKING INDICATOR LIGHTCoaxial input blue , AUX input red.Connect AUX in any input mode, AUX channel works
  • ③………………………… OPTICAL WORKING INDICATOR LIGHT
  • ④………………………… PC-USB WORKING INDICATOR LIGHT
  • ⑤………………………… Bluetooth WORKING INDICATOR LIGHT
  • ⑥………………………… ON/OFF/input mode selection key (short press switch, again short press select input channel,long press switch it off)
  • ⑦………………………… headphone output jack
  • ⑧………………………… AUX input jack
  • ⑨………………………VOL+/-(increase clockwise and decrease counterclockwise)
  • ⑩………………………… Bluetooth antenna interface
  • ………………………… PC-USB input jack
  • ………………………… Optical input jack
  • ………………………… COAXIAL IMPUT
  • ………………………… AMALOG RCA output jack
  • ………………………… POWER(DC power cann’t beyond 12V)



Operation steps with bluetooth version:

  1. Make sure the VOL turnto the minimum.
  2. Connect the external back-end equipment to the output interface of sound source.
  3. Connect the sound source that needs to be used.
  4. To select bluetooth mode, you need to switch the input channel to bluetooth mode for pairing connection.
  5. Connect to power.
  6. short press switch, again short press select input channel,long press switch it off
  7. signal (coaxial/optional/pc-usb/bluetooth)
  8. When connecting AUX input in any input mode, it disconnects the current input and jumps to AUX input
  9. Turn the VOL button clockwise to select the desired volume
  10. The RCA analog output will automatically disconnect when connected to the headset output, such as the headset.



PC-USB Operation Instructinos

  1. Connect the PC-USB interface of the rear surface of the machine with factory provided USB cable (USB can support hot plug)
  2. Press the input signal selection switch to select USB input.
  3. The following photo shows the icon with horn symbol in the lower right corner of PCDAC A5
  4. Right click to pop up the dialog box and click <choose play device.>
  5. Select the playback device recognized by PC in the pop-up dialog box (USB of this machine is automatic identification, no manual installation and drive).
  6. Click to confirm the identified digital output.



Basic edition Specification:

PC-USBinput  Sampling Frequency

192K/24Bit

Frequency Range

20Hz-20kHz(±3dB)

Optical/Coaxial input  Sampling Frequency

192K/24Bit

THD

0.01%

PC-USB System supported

XP/W7/W8/W10/MAC/linux

SNR

105dB

Headphone Maxpower output

405mW  32Ω load

Product Dimension

L148.5*W98*H33MM

headphone matching impedance

16-300Ω

Product Weight

0.33kG

Working voltage

DC12V

Package Dimension

L235*W210*H65MM





With bluetooth version Specification:

PC-USBinput  Sampling Frequency

192K/24Bit

Frequency Range

20Hz-20kHz(±3dB)

Optical/Coaxial input  Sampling Frequency

192K/24Bit

THD

0.01%

PC-USB System supported

XP/W7/W8/W10/MAC/linux

SNR

105dB

Headphone Maxpower output

1000mW  32Ω load

Product Dimension

L148.5*W98*H33MM

headphone matching impedance

16-600Ω

Product Weight

0.35kG

Working voltage

DC12V

Package Dimension

L235*W210*H65MM

Bluetooth Core

5.0







Frequently Asked Questions:

Q: all the cables are connected, but no sound output?

A: 1. Check the POWER indicator is on, press the POWER button if the light is still off, At this point you can find a same output voltage power supply (must12V) to check if the machine or power supply failure.If the POWER indicator light is on, check whether the corresponding input signal is selected correctly.

  1. If the indicator light is on, check whether the VOL knob is in the minimum position. If so, turn clockwise to normal Volume
  2. If both of the above are normal, check the input device if it is paused, mute, or the volume is minimized

Q: Why does the sound is cracking ?

A: This product is for the DAC decoder, but also can be used as preamp, If post equipment is max volume & preamp too, it's easy to distortion, you just need to turn down the volume of the equipment, then ok.

Q: Why do loudspeakers make a lot of electric noise?

A: if you are not using the original factory standard power supply, please replace the power supply before testing.Many power supply in the market have large interference coefficient, which will cause a lot of current sound.

Q: Why the speaker has drone when I just plug in the input cablebut don’t connect the sound

sources?

A: If you use unshielded signal lines, there will be interference signals entering the power amplifier. If you hate the sound, you are advised to use the shielded signal lines or unplug the signal lines.

Q: Can the 6.35mm headphone output port connect to the microphone?

A: no, the headphone interface is the signal output interface, not the input interface.

Q: why does the volume of the machine stay the same, while the sound of different audio sources (such as CDS and mobile phones) is different?

A: The output range of different types of audio source devices is different, the mobile phone is usually 0.35mV, and the CD is 1V.The signal output amplitude of the sound source will directly influence the volume

Q: why there is no sound when PC-USB connects to PC?

A: First press the PC-USB operation to confirm whether the digital playback output has been selected. If still no sound, you can restart the computer and repeat the operation again.

Q: why is it that all my wires are plugged in, but the RCA analog output is silent?A: At this point, you should check to see if the headphone output is plugged into the headphone or headphone adapter.If so, you should unplug the headset or headphone converter to simulate RCA output.

Q: why can't I find the bluetooth pairing name

A: the machine is designed to be energy efficient and environmental friendly. To use bluetooth, you must switch to bluetooth input mode to search for pairing



Warning:

  1. Please do not open the shell without permission. Improper operation may cause the danger of electric shock.
  2. Please use the power supply of the regular manufacturer, otherwise it will damage the machine.
  3. Please do not use the machine in a high temperature and humidity environment.
