AIYIMA DAC-A5 MAX

Feature:
Dual Headphone Output; upgrade the fiber base, optimize the circuit board design, redefine quality and sound.
Mac/PC plug-In-play, no special software is needed, RCA and dual headphones outputs.
USB and optical coaxial S/PDIF inputs, can choose the input mode. With the volume control knob that can adjust the headphones as well as the RCA output. Note: Dolby signal input is not supported！
Hi-Fi headphone amp chips TPA6120,; with headphones protect circuit for any 16~600 Ohm headphones.
Stream bit-perfect 24bit/192Hkz HD with low jitter, built-in Cirrus SA9137 +TPA6120 + ESS9018K2M DAC chips, as desktop DAC, stereo headphone amp, and preamp.
Parameters:
DAC DECODER- DAC A5 MAX
Chipset:SA9137+ES9018K2M+TPA6120+TPA5430 +NE5532+AT32F421K8T7
Bluetooth Chip: QCC5125

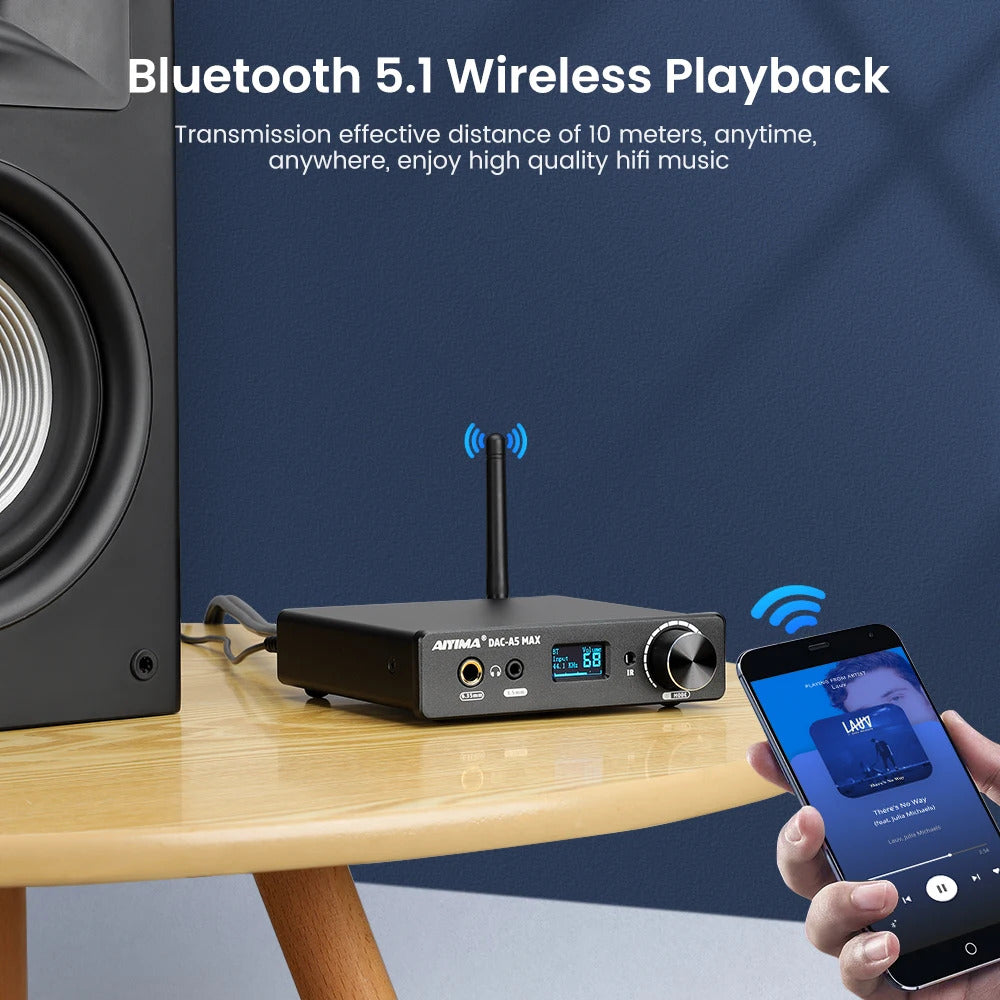

Bluetooth 5.1 support: SBC, AAC, APTX, aptx-ll, aptx-hd, ldac
Operational amplifier chip: NE5532
Replaceable chips: dual Op amp OPA2134 and 0PA1656
PC-USB sampling rate: up to PCM 384K, DSD256 supported
Distortion: 0.005%
Signal-to-noise ratio: > 118dB
Headphone amplifier output power: 500mW@32 Q
Headphone amplifier signal to noise ratio: > 118dB
Headphone amplifier impedance: 16~600 ohm

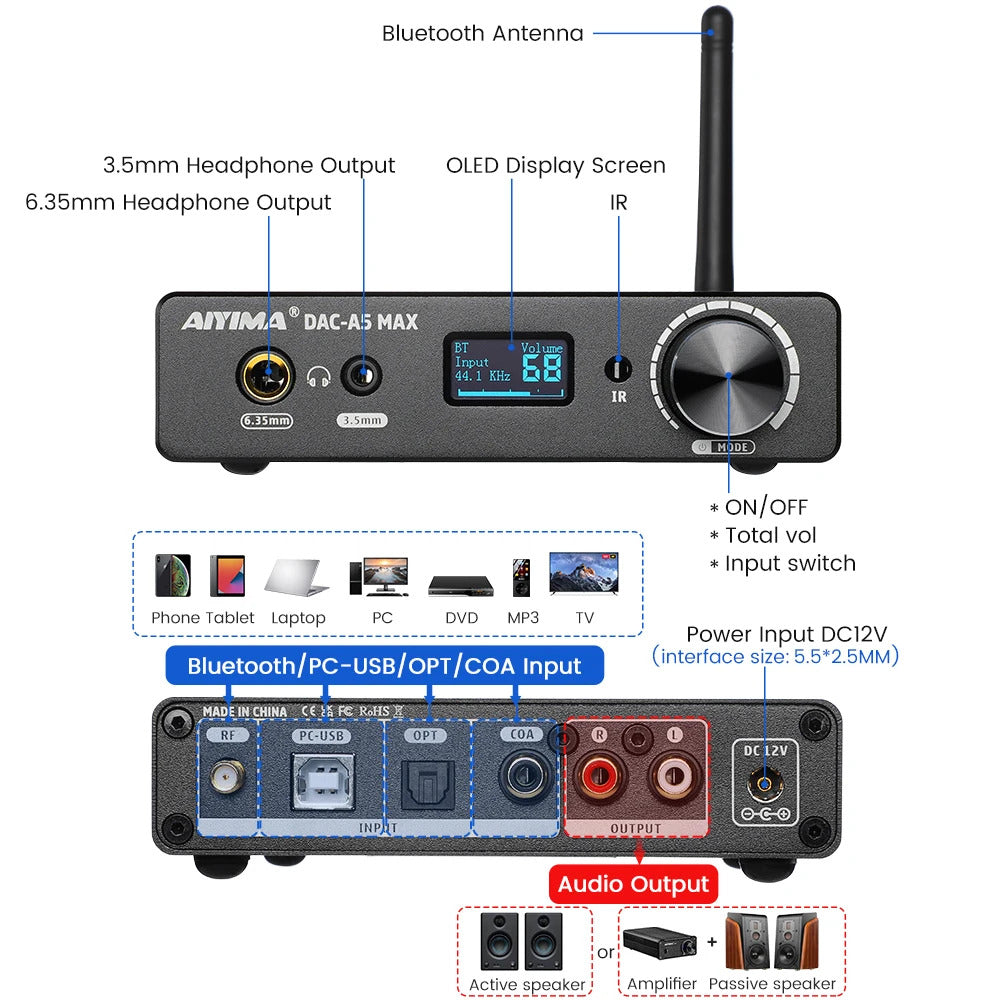

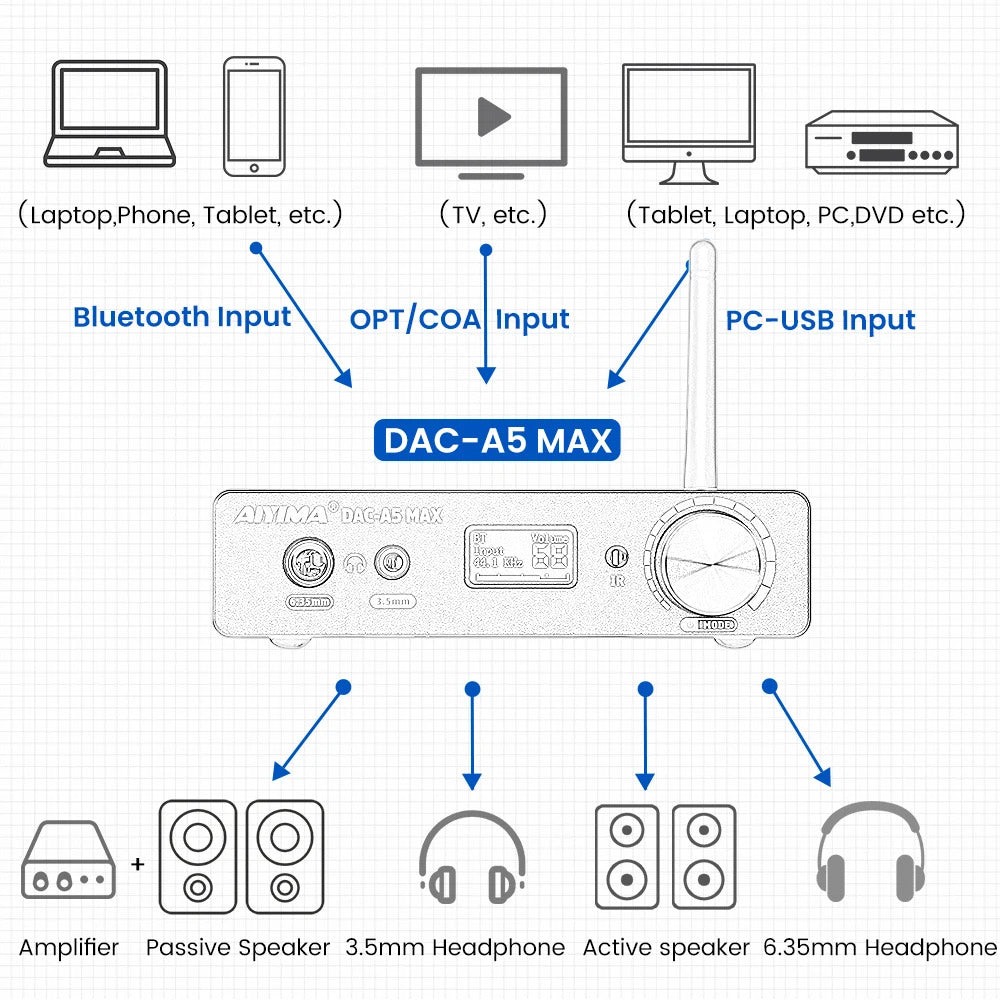

Input mode: optical fiber, coaxial, Bluetooth, PC-USB, MIC input Output mode: line output, 3.5+6.35 earphone output
Working power supply: DC12V
Dimensions: 125 * 133 * 33MM(L* W*H))

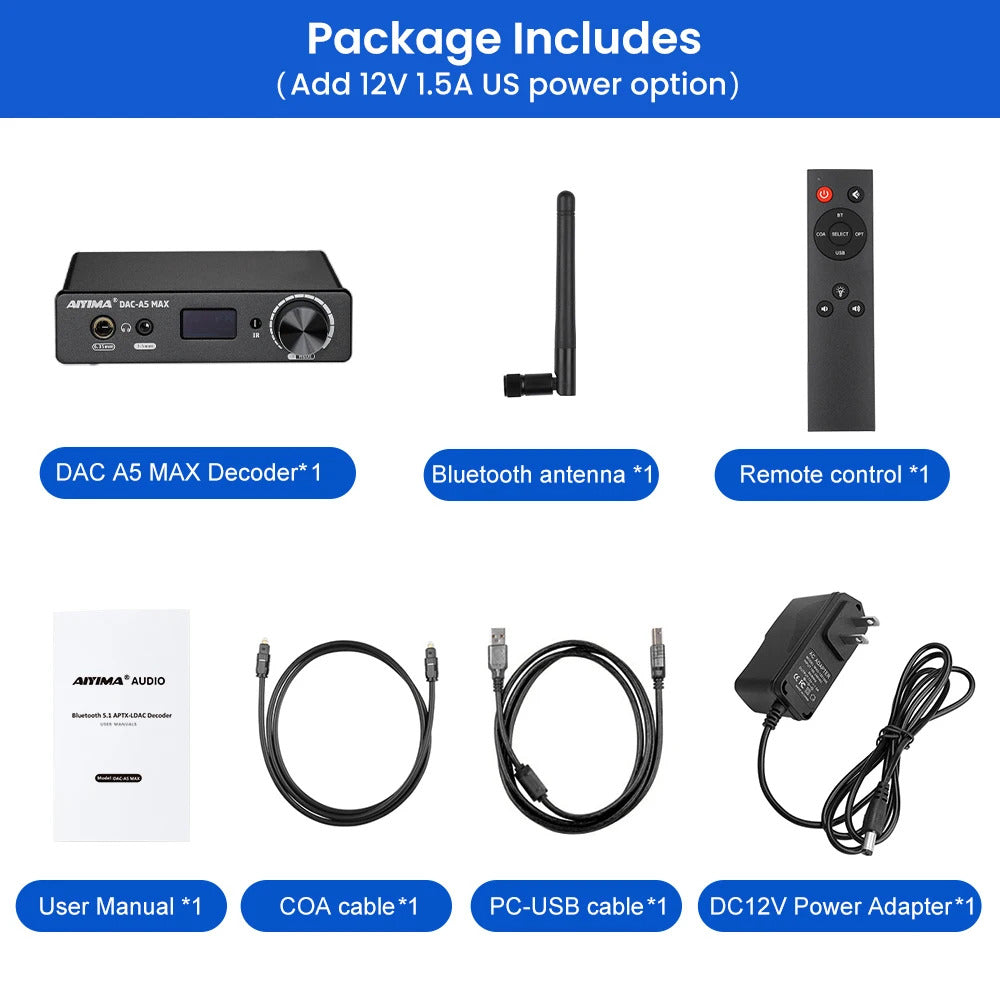

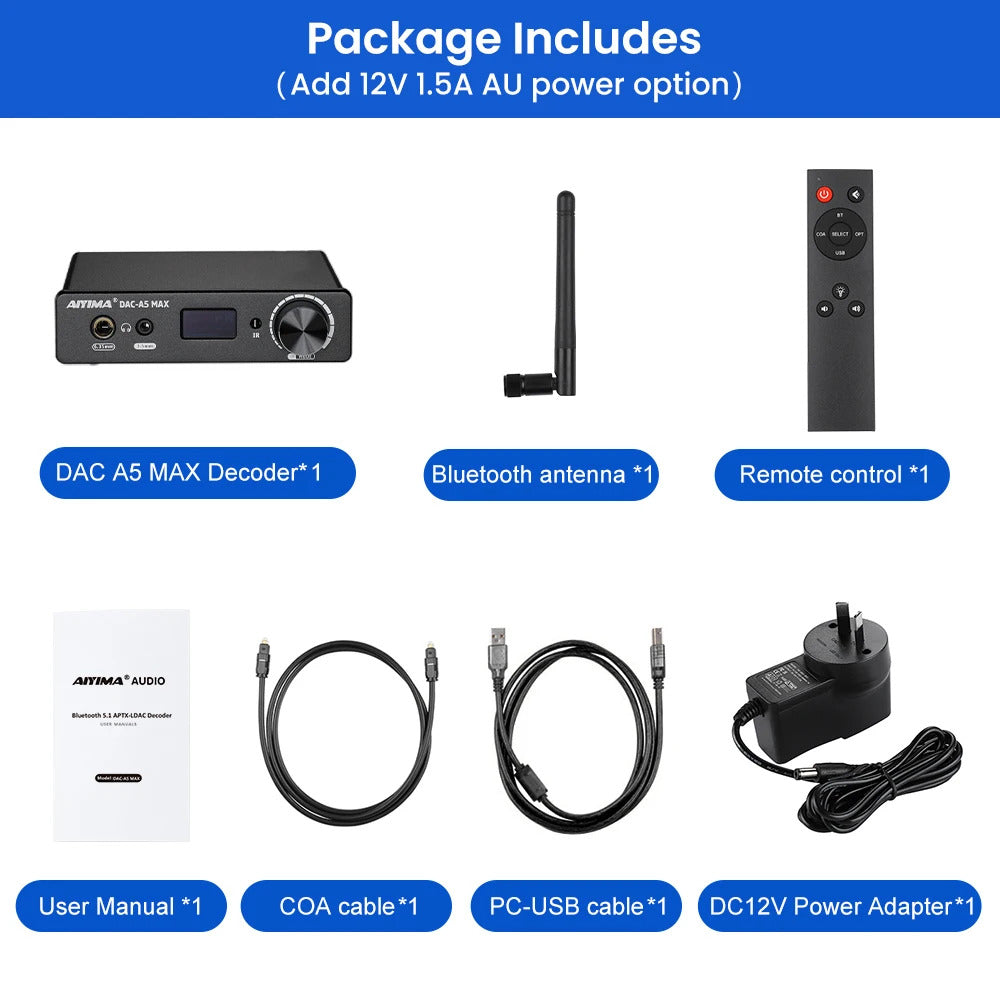

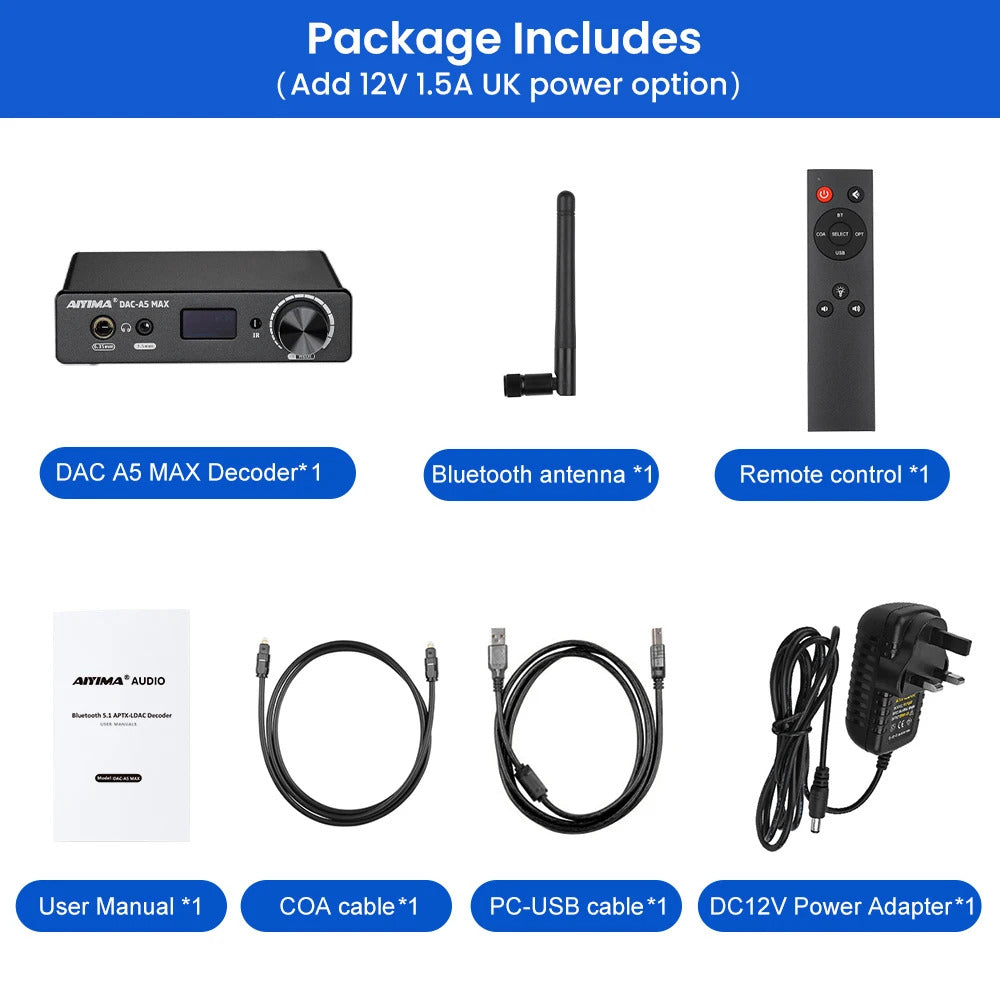

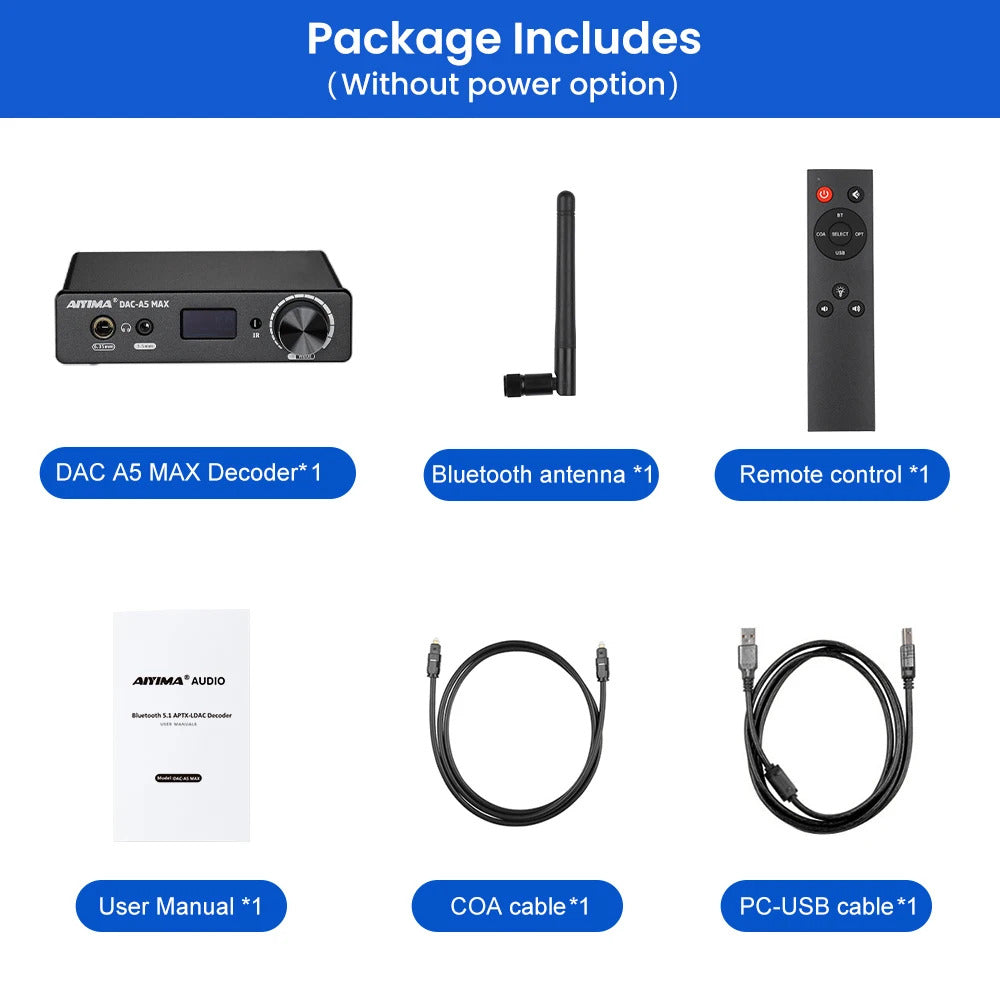

Package included
1* DAC A5 Max Headphone Amplifier
1* 12V Power Adapter (Optional)
