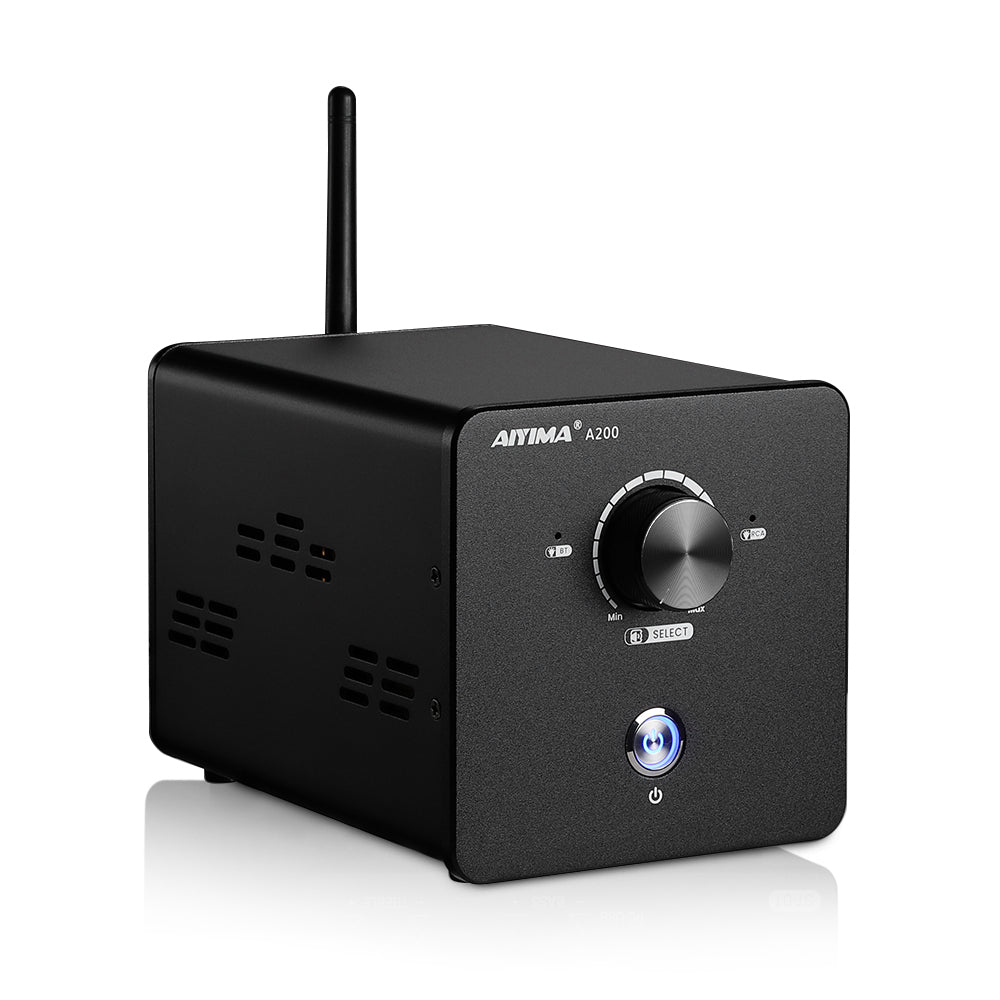

AIYIMA A200 | TPA3255 Power Amplifier 200Wx2

Product description:
Product Name: A200 TPA3255 Bluetooth Power Amplifier
Power amplifier chip: TPA3255
Bluetooth: QCC3034 aptx-hd
Maximum power: 200W+200W (the maximum power is AC220V in the power supply, 4Ω speaker, distortion 10%)
Impedance: 4-8 Ohm
Power supply voltage: AC110V/220V (built-in power supply DC42V 7.5A)
Op amp chip: NE5532 (op amp cannot be replaced)
Gain: 24dB
Distortion rate: 0.1%
Signal-to-noise ratio: 95dB
Response frequency: 20HZ-20KHZ±3dB

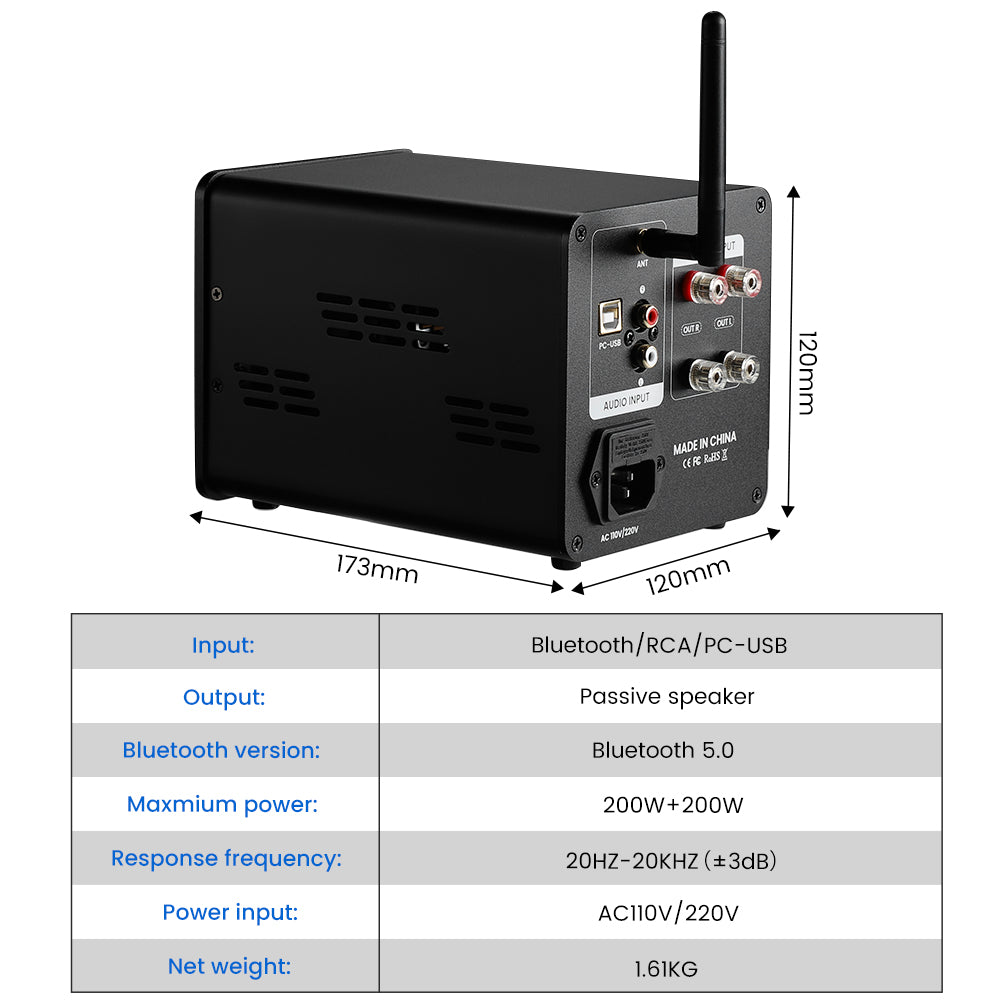

Size: 122.5*122.5 x 173.5mm

How to switch inputs:
In the power-on state, short press the multi-function knob to switch the input mode, the bluetooth indicator light on means entering the bluetooth mode, and the RCA connection indicator light on means entering the RCA connection mode.

What should I do if there is no sound in the USB input?
Because both the USB input and the Bluetooth input use the same module, the Bluetooth input has a higher priority. After switching to the Bluetooth input mode, if a mobile phone has been connected to the Bluetooth of the amplifier, the amplifier will play any sound from the mobile phone and play the Bluetooth input first. audio, thereby cutting off the USB input. If there is no sound from the USB input, first stop the Bluetooth playback of the mobile phone, and then check whether the playback device of the computer is set as the default device for the USB device. If not, just set the USB device as default.

Package included:
1Pcs A200 TPA3255 Amplifier
