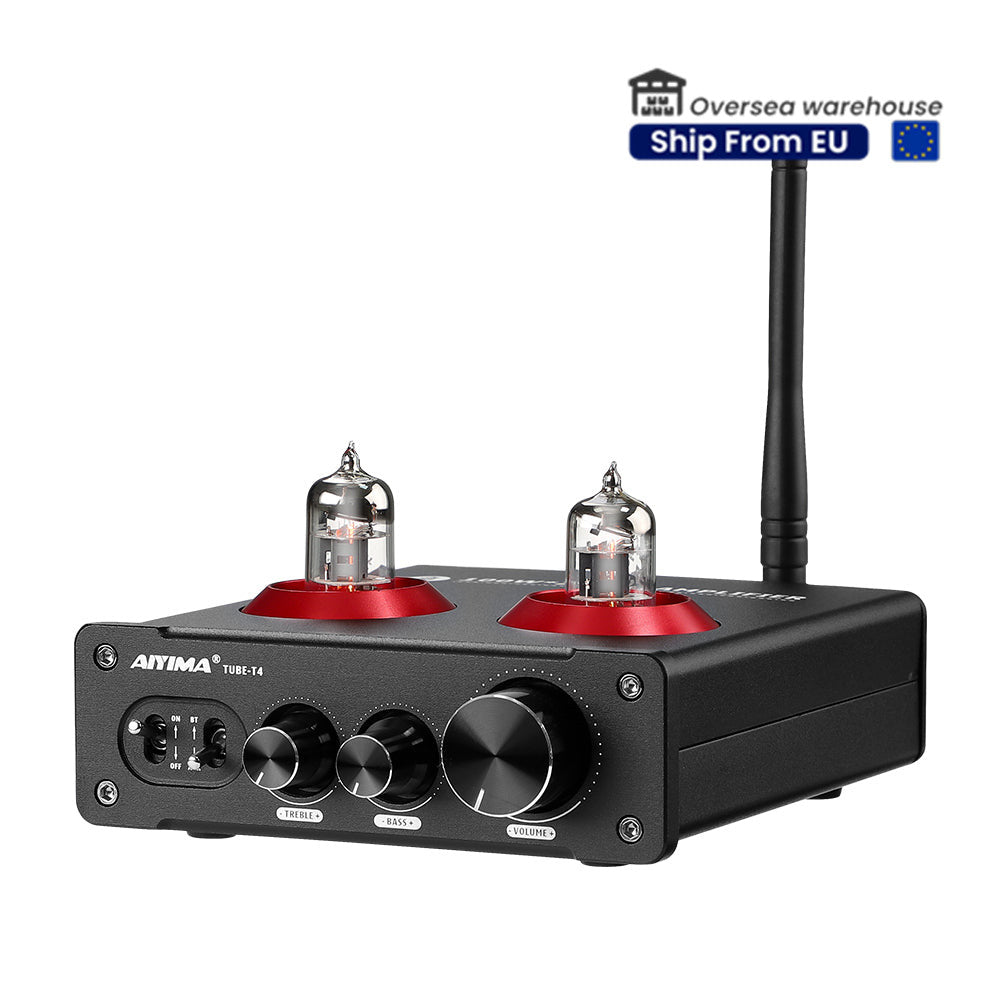

AIYIMA T4 - EU Warehouse Ship
Product description:
TPA3221 is a high-power class-D amplifier with closed-loop negative feedback with a bandwidth of up to 100kHz, providing low distortion of the audio band and excellent audio quality. The device works in AD or low no-load current HEAD (high efficiency AD mode) modulation, and can Ohm load provides 2x105W.
Features:
1. Using Beijing 6J1 electronic tube, can replace the tube: 6K4, 6J2, GE5654, 6J3, 6J4, 6J5, 6*1N, 6AK5, etc.
2. Original TPA3221 Class D amplifier chip.
3. Op-amp chip LM4562NA
4. The main filter capacitor adopts imported 1000UF/50V
5. High-precision chip resistors are selected for the resistors to ensure a good signal-to-noise ratio of the whole machine.
6. The PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and the whole process of spraying tin to ensure good passing performance of large and small currents. First-class PCB quality.
7. The input and output use gold-plated RCA lotus seat, durable and beautiful!
8. The board wiring is reasonable, beautiful, and low noise

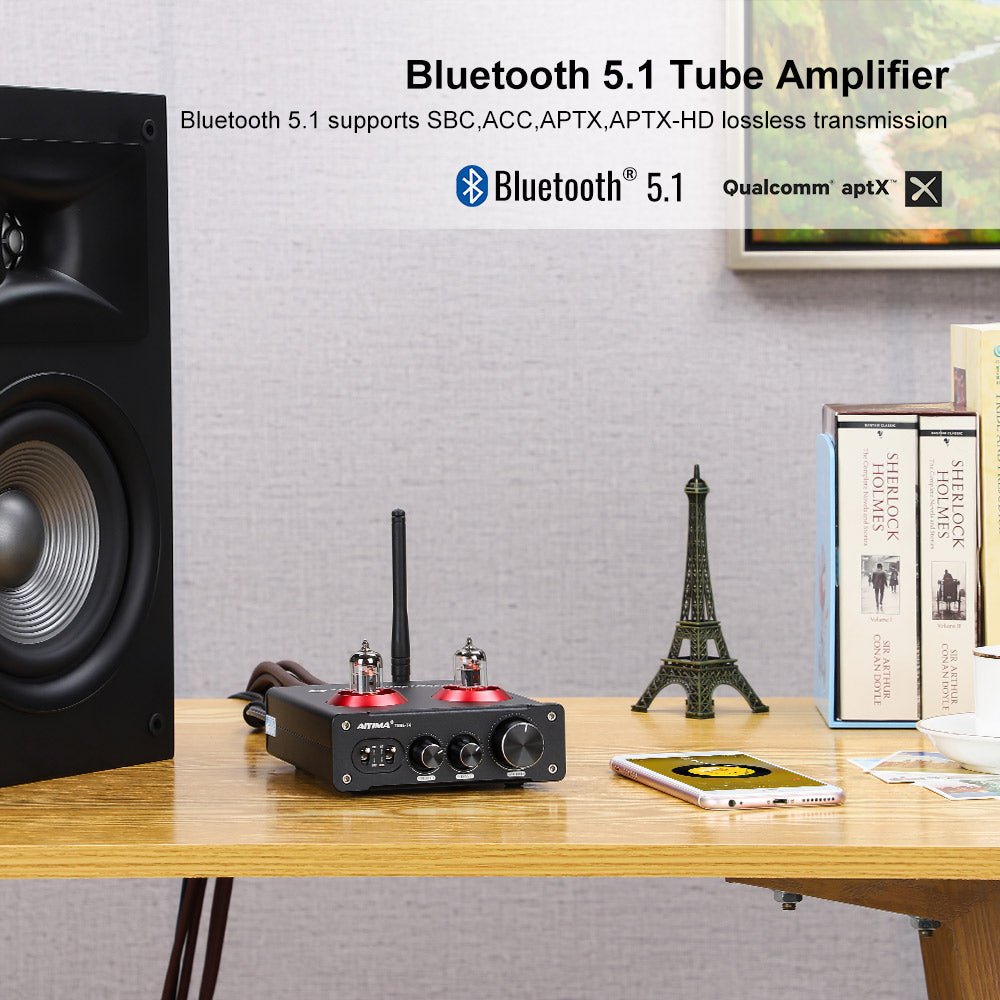

9. Bluetooth uses Qualcomm QCC3031 version 5.1, supports sbc, aac, aptx, aptx-HD
10. Bluetooth DAC uses PCM5102 to decode independently
Product parameters:

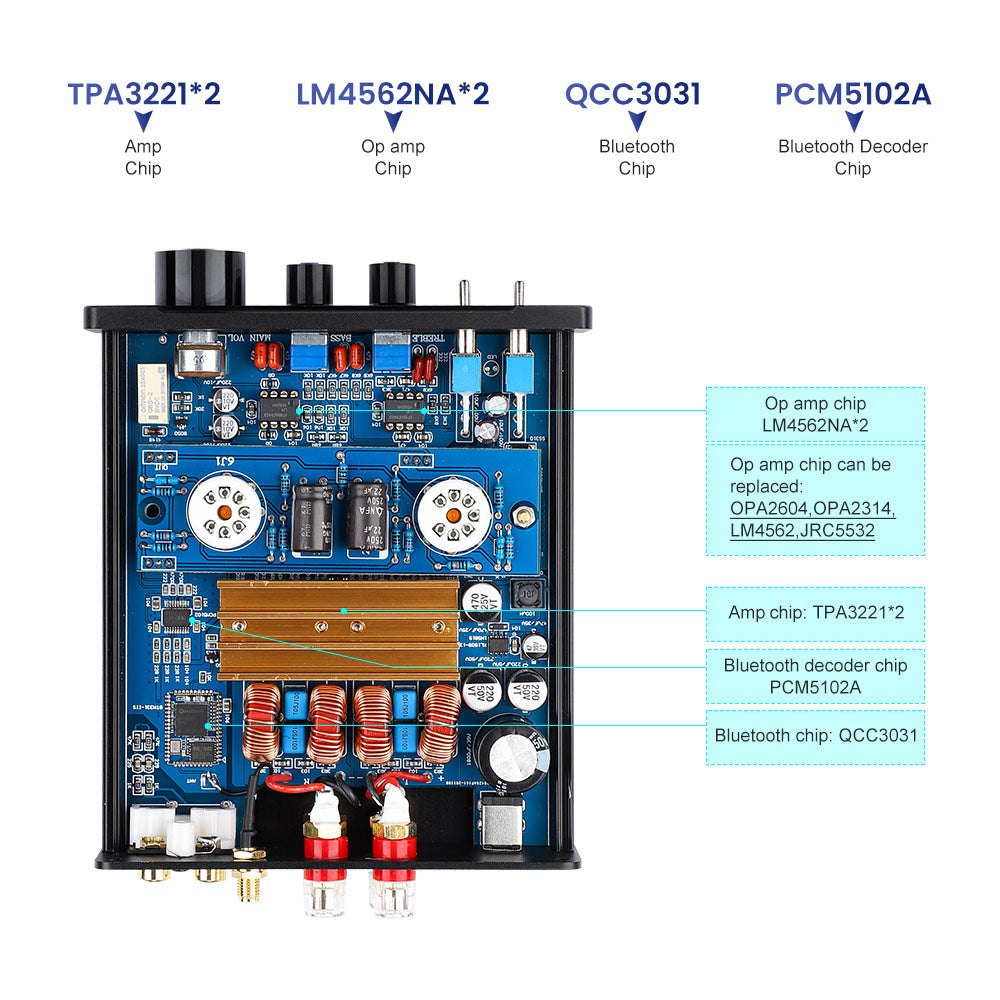

Chipset: 6J1+TPA3221+LM4562NA+QCC3031+PCM5102A
Operational amplifier chip: LM4562NA *2 (Replaceable chips: opa2604ap, opa2314, MUSE01/02/03, OPA2107AP, etc.)

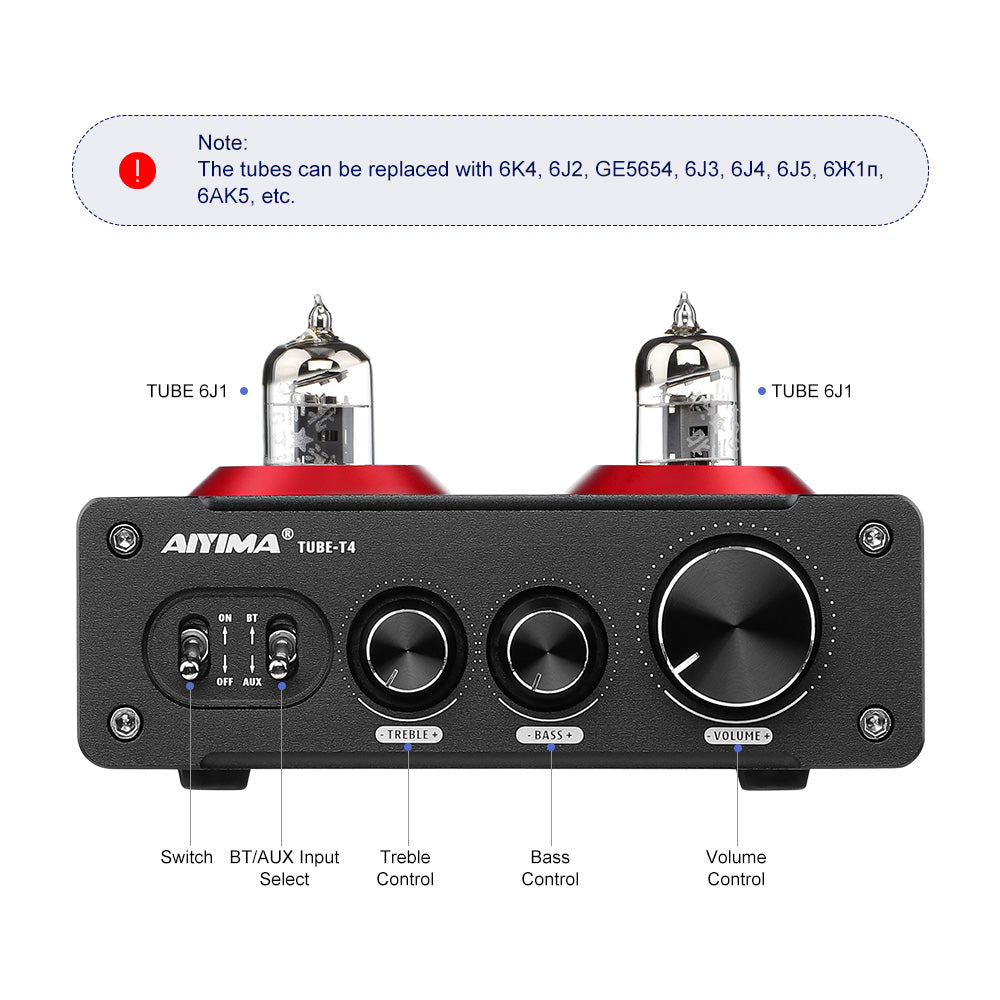

Tube model: 6J1 tube (can replace tubes: 6K4, 6J2, GE5654, 6J3, 6J4, 6J5, 6*1N, 6AK5, etc.)
Bluetooth chip: QCC3031+PCM5102A (Bluetooth decoder chip) (Bluetooth 5.1) Support: SBC, ACC, APTX, APTX-HD
Distortion: 0.1%
Signal to noise ratio: -90db
Frequency response: 20-20Khz (±3db)
Treble/bass adjustment range: ±6db
Speaker impedance: 2-8Ω
Rated output power: 100Wx2, 4Ω load
Maximum output power: 120Wx2, 2Ω load

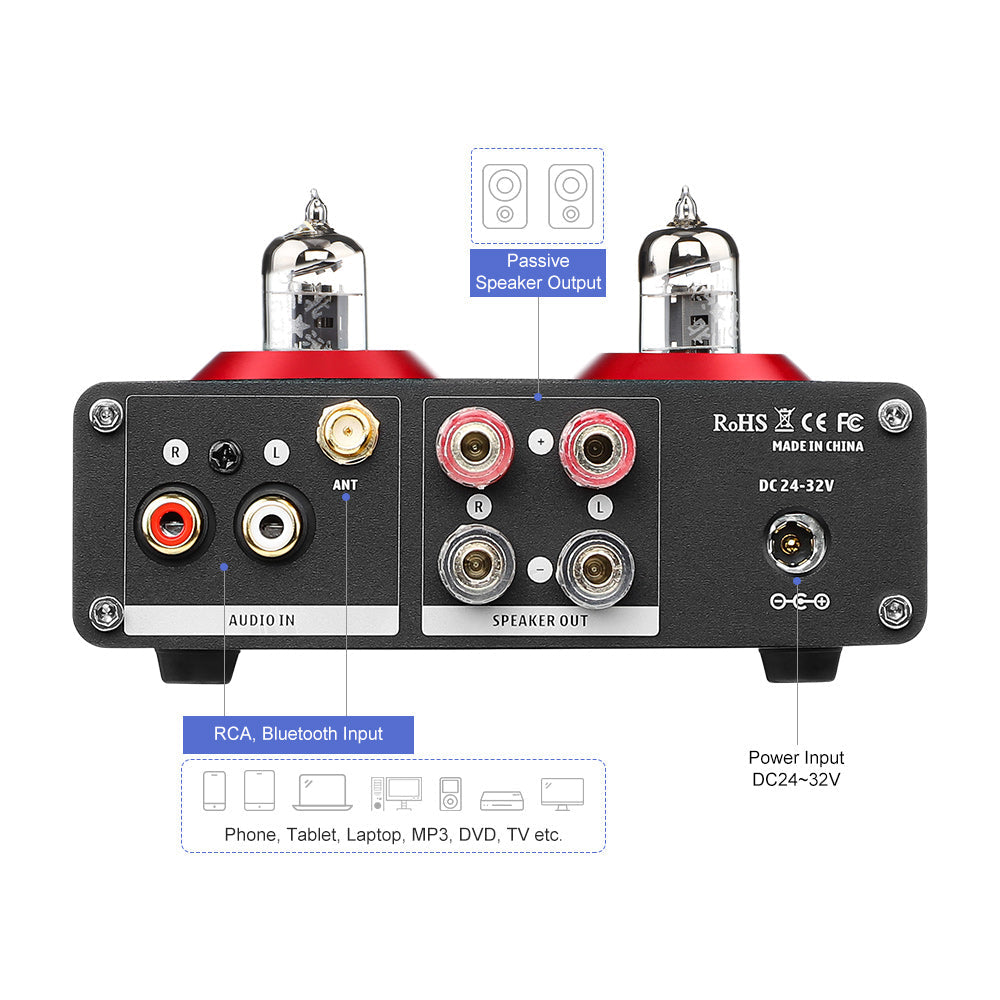

Input mode: Bluetooth / RCA, supported devices: mobile phones, tablets, computers, mp3 TVs, etc.
Output mode: passive speaker
Power supply: DC19-32V, 3A or more
Size: 138*121*40mm
Package included:
1Pcs TPA3221 Tube Amplifier
2Pcs 6J1 Tube
1Pcs EU DC32V 5A Supply Power
